Description

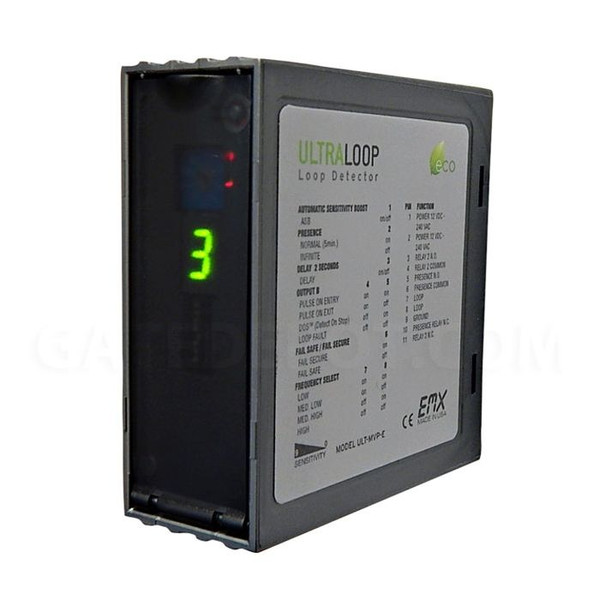

The ULTRA-MVP-2 two channel, multi-voltage vehicle loop detector combines small size with a 12VDC to 240VAC input range. Reduce inventory costs by stocking and transporting just one universal unit. This detector features DETECT-ON-STOP™ or (DOS) technology, which allows detection only when a vehicle has come to a complete stop on the loop. This exclusive feature is unique to EMX and is a major advantage if you want to ignore cross traffic in tight spaces.
Features:
- Single or dual channel unit for US or EU wiring
- ULTRAMETER™ displays optimum sensitivity setting/crosstalk interference
- Automatic sensitivity boost (ASB), delay, fail-safe/fail-secure and infinite or normal (5 min.) presence
- Socket mount -11 pin (JEDEC B11-88)
- DETECT-ON-STOP allows detection only when a vehicle has come to a complete stop on the loop
- 10 sensitivity settings
Technical Specifications
Voltage
12-60 VDC or 12-240 VAC
Current
25 mA/50 mA
Loop Type
20-2000 µH (Q factor ≥ 5)
Material
ABS Plastic
Surge Protection
Loop circuitry protected by surge suppressors
Relay Contact
SPST
Channels
2
Indicator
LED
Operating Temperature
-40˚C…82˚C (-40˚F…180˚F)
Operating Humidity
0…95% relative humidity
Mount Type
Socket Mount
Connector Type
11 pin male (JEDEC B11-88)
Compliance
CE
Warranty
2 Years Warranty
