Description

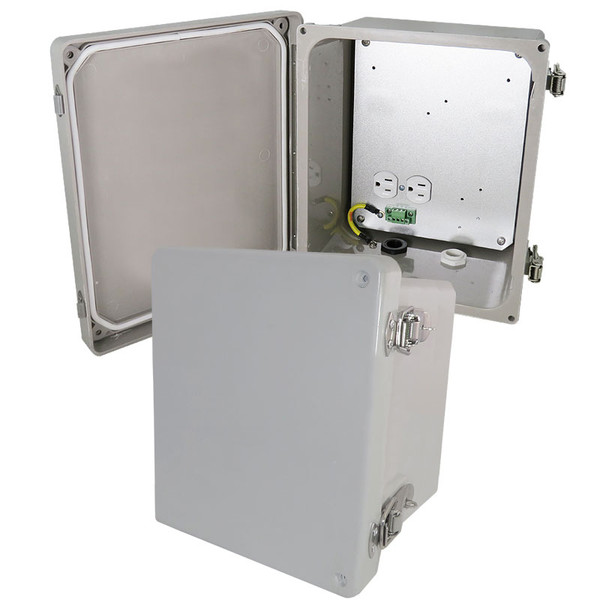

The Altelix NF100806A1 NEMA 4X Weatherproof Enclosure features two pre-wired 120VAC power outlets and our 120VAC top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws. The finished aluminum equipment mounting plate features multiple tapped holes for equipment installation and can be easily drilled by the installer for unique application requirements.
Features:
- (2) Pre-Wired 120VAC Outlets
- Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
- Fiberglass Reinforced Polyester, FRP
- Includes 1/2" Liquid-Tight Fitting, Cable Glands and Stainless Steel Mounting Feet
- RF Transparent Enclosure
- Pole Mounting Kit Available
Technical Specifications
Material
Fiberglass Reinforced Polyester
Color
Gray
Voltage
120VAC
Outer Dimensions
11.7 x 9.8 x 6.8 In. (297 x 250 x 173 mm)
Inner Dimensions
6.0 x 7.2 x 4.7 In. (152 x 184 x 121 mm)
Load Capacity
15A @ 120VAC
Plate Material
0.10 in. (2.5mm) Aluminum
NEMA Type
- NEMA 4
- NEMA 4X
IP Rating
IP66
Plate Dimensions
9.1 x 7.4 inch (231 x 188 mm)
Weight
6.6 lbs. (3.0 kg)
Warranty
2 Year Warranty
Warranty
2 Year Warranty
