Description

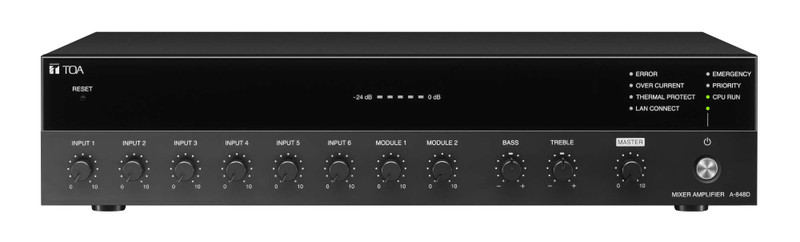

TOA's 800D Series mixer amplifier is a PA amplifier equipped with 4 microphone inputs, 2 auxiliary inputs, and 2 slots dedicated to the 900 Series modules. It employs a PFC circuit. It also features the following functions: Volume control function, Priority function, Chime function, and Remote confirmation function. In addition, it is equipped with a 2-channel input BUS of AUDIO and DUCK, and the signal processing function. The 800D Series mixer amplifier is ideal for paging announcement and BGM applications in schools, offices, and super markets.
Features:
- TOA Class D amplifiers for maximum efficiency
- Auto Gain Control for microphone inputs
- Onboard DSP - Dynamic Feedback Filters, Speaker EQ (3 bands of parametric EQ) , Input tone controls
- Assignable input priorities
- Builtin defeatable pre-announce chime
- IP protocol available
Technical Specifications
Voltage
120VAC
Frequency
50Hz-20kHz ±3 dB (1/8 rated output)
Consumption
170W
S/N Ratio
88dB
Indicator
LED
Operating Temperature
–10 °C to +40 °C (14 °F to 104 °F)
Operating Humidity
85%RH or less (no condensation)
Finish
- Panel: ABS resin Black
- Case: Surface-treated steel plate Black Paint
