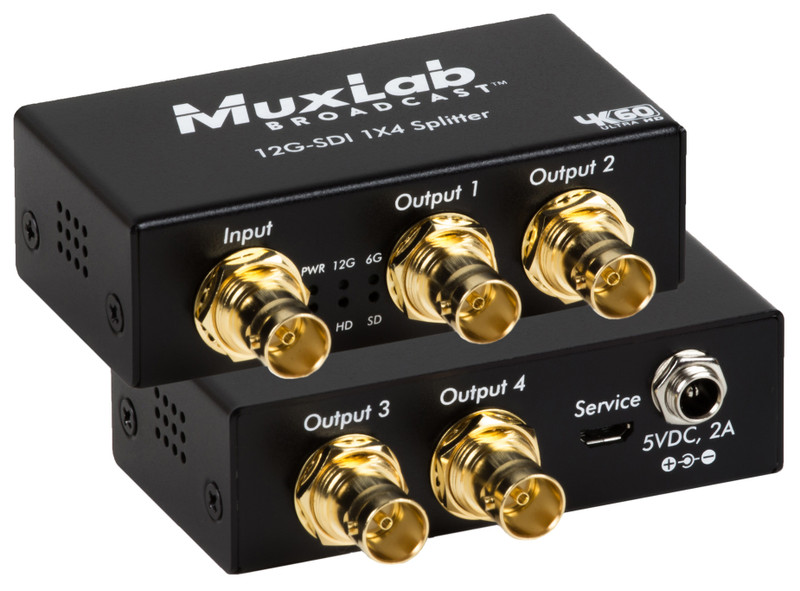

12G-SDI 1X4 SPLITTER, 4K/60 - 500727

Stock Availability

in stock

Muxlab

SKU 500727 500727

12G-SDI 1X4 SPLITTER, 4K/60 - 500727

Product Rating Product Rating Product Rating Product Rating Product Rating 0 Reviews
Write a Review
Price:
$386.00
  • Weight:
    0.37 LBS
  • Shipping:
    Calculated at Checkout

Key features

Impedance 75Ω
Channels Up to 8
Cable Type RG-59
Voltage 110-240V/5VDC
Operating Temperature 0° to 40°C
Operating Humidity Up to 90% non-condensing
2 Year Warranty
Sale assistant
Contact our Sales Team for a tailored experience
(718) 298-4000 Email us
Adding to cart… The item has been added
?Special Order Information
Sign In for Dealer Pricing Become a BLVS Customer
SIGN IN

Description

The 12G-SDI 1x4 Splitter, 4K/60 (500727) allows one (1) 12G/6G/3G/HD/SD-SDI source to be distributed and amplified to up to four (4) 12G/6G/3G/HD/SD-SDI displays. The splitter supports up to 4K (3840 X 2160) video and HD audio, including 480i (SD-SDI), 720p/1080i (HD-SDI), 1080p (3G-SDI), 4K/30 (6G-SDI) and 4K/60 (12G-SDI). The device automatically detects the 12G/6G/3G/HD/SD-SDI signal and re-clocks and regenerates the signal at the output for extending distances between source and displays.

Features:

  • Distribute one 12G-SDI source to four displays
  • Supports up to 4K @ 60Hz, including 12G/6G/3G/HD/SD-SDI
  • Automatically detects re-clocks and regenerates the 12G/6G/3G/HD/SD-SDI signal
  • LED diagnostic

Technical Specifications

Bandwidth
  • 11.88bps
  • 11.88/1.001Gbps
Impedance
75Ω
Channels
Up to 8
Cable Type
RG-59
Voltage
110-240V/5VDC
Operating Temperature
0° to 40°C
Operating Humidity
Up to 90% non-condensing
Material
Metal
Compliance
  • FCC
  • CE
  • RoHS
Warranty
2 Year Warranty

Warranty

2 Year Warranty
