Description

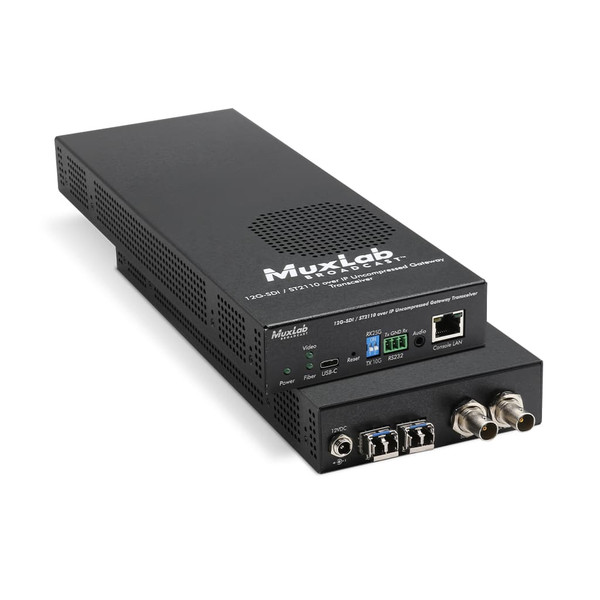

The transceiver unit allows 12G-SDI equipment to be extended up-to many miles over an IP network. This Gateway Converter supports the ST-2110 AV over IP protocol standard for Broadcast applications. It supports audiovisual data up to uncompressed 4K@60Hz resolution video and 16 audio channels (12Gbps bandwidth). This unit is a transceiver and can be configured as a Transmitter or Receiver for added flexibility and convenience.
Features:
- Supports SMPTE ST-2110 uncompressed 12G-SDI video up to 4K@ 60Hz
- Supports SMPTE ST-2022-7 (Class D, supporting up to 150usec delay with no frame lose) AV signal Redundancy (Seamless Protection Switching)
- Extend SDI audio/video over an IP network up to 6.2 miles (10km).
- This device is a Transceiver and can be configured as a Transmitter (Encoder), or Receiver (Decoder)
- This device can be used over 25Gbps Network or 10Gbps Network.
- Supports many Transmitters and Receivers depending on network bandwidth
Technical Specifications
Voltage
12V
Current
3A
Consumption
30Watt
Operating Temperature
0° to 40°C
Operating Humidity
Up to 95% non-condensing
Material
Aluminum
Compliance
- FCC
- CE
- RoHS
Bandwidth
- Up to 12 Gbps over 25G network
- Up to 6 Gbps over 10G network
Warranty
2 Year Warranty
