Description

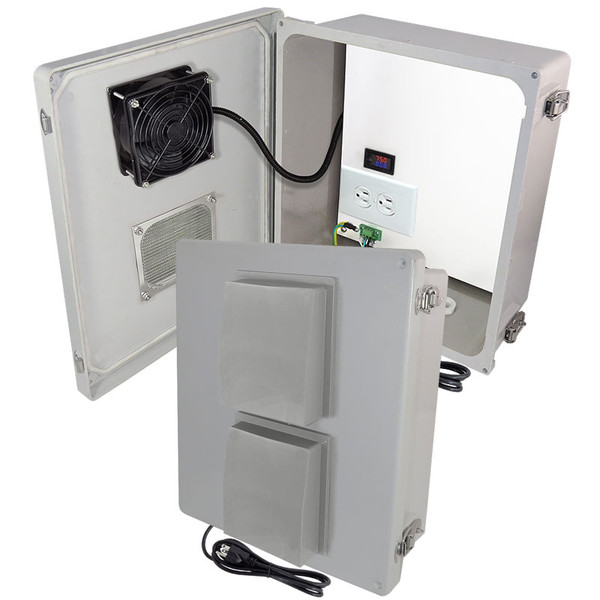

The Altelix NF141206VMFA1C-DF Fan Cooled Vented NEMA Enclosure is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The non-metallic PVC equipment mounting plate features two pre-wired 120VAC power outlets for your equipment.
Features:
- No Electrical Wiring Required
- Cooling Fan with Programmable Digital Temperature Controller
- Two (2) 4" Vents with Rain Shields and Screens
- (2) Pre-Wired 120VAC Outlets with 5ft Power Cord
- Removable 120VAC Terminal Block
- Includes Cable Glands and Stainless Steel Mounting Feet
Technical Specifications
Material
Fiberglass Reinforced Polyester
Color
Gray
Compliance
UL94-5V
Load Capacity
10A @ 120VAC
NEMA Type
- NEMA 3R
- NEMA 3RX
IP Rating
IP24
Voltage
120VAC
Outer Dimensions
15.7 x 13.8 x 6.5 Inches (401 x 352 x 165 mm)
Inner Dimensions
13.0 x 11.0 x 4.2 Inches (330 x 279 x 106 mm)
Cord Length
5ft
Weight
11.0 lbs. (5.0 kg)
Operating Temperature
14°F (-10°C) to 120°F (60°C)
Plate Material
0.25 in (6.4 mm) PVC
Plate Dimensions
10.9 x 12.8 inch (276 x 324 mm)
Warranty
2 Year Warranty
