Description

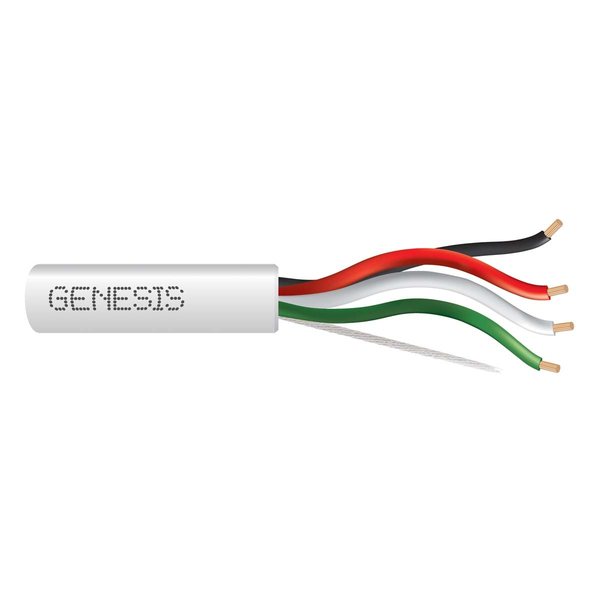

Genesis Unshielded Multiconductor Cables offer a versatile solution for various signal and limited-power transmission applications.
Features:
- Plenum-Safe CMP/FT6 Low-Smoke Jacket
- Approved for Air-Handling Spaces
- Reliable Performance in Demanding Pathways
- UL/ETL Compliance
- Countdown Footage for Easy Measuring
- Cost-Effective, Code-Compliant Wiring
Technical Specifications
Color
Natural
Cable Length
1000ft
Package Type
Reel
American Wire Gauge
16AWG
Conductor Type
Stranded Bare Copper
CAT
FT6
Jacket Type
PVC
Shield Type
Unshielded
Voltage
300V
Number of Conductors
4
Stranding
19Strand
Nominal Weight
42lbs/1000ft
Compliance
- NFPA 262
- C22.2 FT6
- UL444 UL1424 UL13 REACH RoHS
Cable Type
CM Plenum Cable
