Description

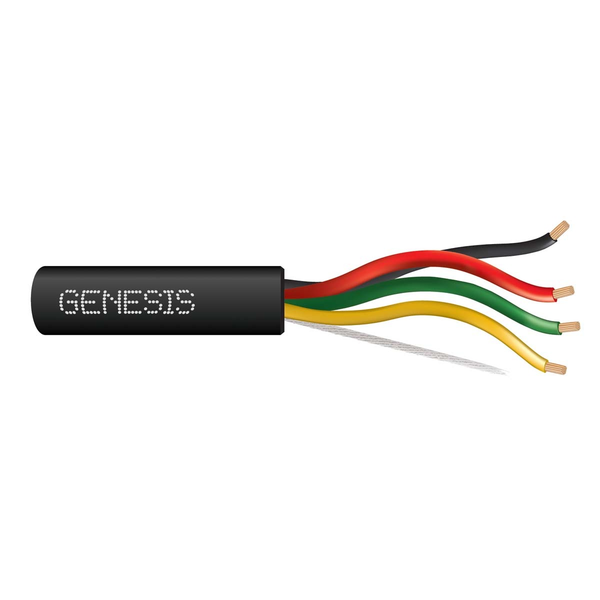

Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Features:
- Low-smoke CMP/FT6 rating—approved for use in air-handling spaces
- Solid copper core plus LS PVC insulation under a plenum PVC jacket
- Built-in ripcord for fast, clean jacket access—no nicked conductors
- Sequential footage printing improves measuring and reduces scrap
- Withstands −20 °C to 75 °C; 300 V for dependable service
- Installer-friendly for security sensors, HVAC controls, and paging
Technical Specifications
Color
Black
Cable Length
1000ft
Package Type
Reel
American Wire Gauge
16AWG
Conductor Type
Stranded Bare Copper
CAT
CL3 FPL
Jacket Type
PVC
Shield Type
Unshielded
Voltage
300V
Number of Conductors
4
Stranding
26Strand
Nominal Weight
69.7lbs/1000ft
Compliance
- NFPA 262
- CSA C22.2 No. 2556
- UL444
- UL1424
- UL13
- REACH/RoHS
Cable Type
Direct Burial Cable
