Description

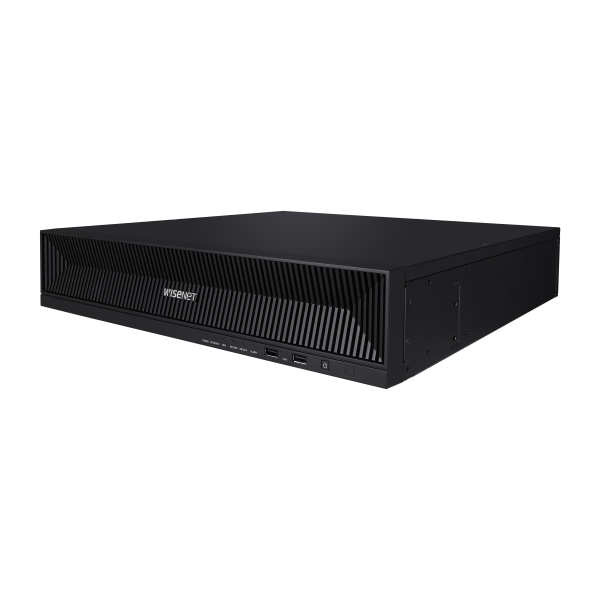

The XRN-1620B2 from Hanwha Vision is a powerful 16 channel 4K network video recorder designed for high-performance surveillance needs. With support for H.265, H.264, and MJPEG compression, this NVR delivers exceptional video quality at a maximum throughput of 140Mbps. Ideal for large-scale installations, it allows for up to 32MP camera resolution, multiple recording streams, and dynamic event management, ensuring that your security system captures every detail effortlessly.
Features:
- Up to 16 channels, Supports up to 32 megapixel camera resolution - Enables detailed surveillance with high clarity across multiple cameras.
- 140Mbps network camera recording - Provides ample bandwidth to ensure smooth and uninterrupted video capture.
- Support 4K video out on HDMI monitor - Delivers ultra-high-definition video playback for enhanced monitoring.
- Support dual monitor HDMI/VGA video out - Allows simultaneous display on two monitors for comprehensive viewing options.
- WiseStream support - Optimizes bandwidth consumption without sacrificing video quality.
- Maximum 8 internal HDDs (80TB) - Provides extensive storage capacity for long-term video retention.
Technical Specifications
Channels
16
OS
- Embedded
- Linux
Video Compression
- H.265
- H.264
- MJPEG
Bandwidth
Maximum 140Mbps
Storage Capacity
Up to 10TB
Protocol
- RTP
- RTSP
- HTTP
- CGI(SUNAPI)
Audio Compression
- G.711
- G.726
- AAC(16/48KHz)
Operating Temperature
0°C to +40°C(32℉ to 104℉)
Operating Humidity
20% ~ 85% RH
Voltage
100-240VAC
Color
Black
USB Port
- 3EA(Front 2 x USB 2.0
- Rear 1 x USB 3.0)
Audio Type
2-Way
