Description

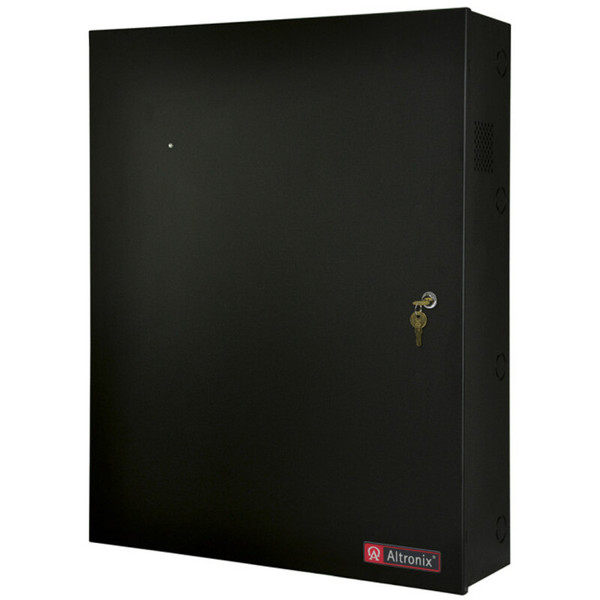

Altronix T2MK75F16 kit consists of Trove2 enclosure, TM2 Altronix & Mercury backplane and TMV2 door backplane with 24VDC @ 10A and 12VDC @ 10A power supply/chargers, sixteen (16) fuse protected output power distribution module and two eight (8) fuse protected output access control modules. This kit also accommodates various combinations of Mercury* boards for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Features:
- 24VDC and 12VDC power supply/chargers
- 16 gauge galvanized steel backplane simplifies board layout and wire management
- Enclosure accommodates up to four (4) 12VDC/12AH batteries
- All Altronix components of this Trove kit are UL Listed sub-assemblies. Please refer to the Sub-Assembly Installation Guides for further information
- Supervision - AC Fail - Low Battery Battery - Presence Low - Power Shutdown
- Accommodates the following Mercury controllers: Mercury: LP1501, LP1502, LP2500, LP4502, MR16IN, MR16OUT, MR50, MR52, MR62e, MUX8
Technical Specifications
Voltage
- Input: 120VAC
- Output: 24VDC
Frequency
60Hz
Current
- Input: 4.5A
- Output: 10A
Operating Temperature
0ºC to 49ºC (32ºF to 120ºF)
Operating Humidity
85% +/– 5%
BTU
217 BTU/Hr
