Description

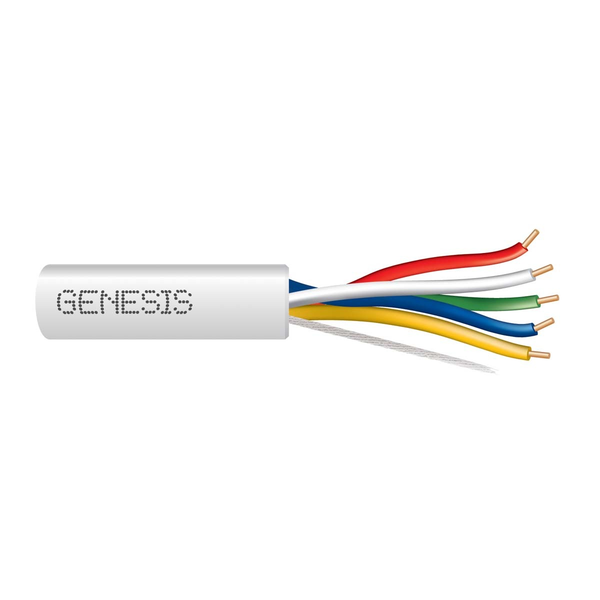

Genesis Thermostat Cables guarantee reliable signal transmission between thermostats and heating/cooling systems, keeping today’s indoor environments comfortable and energy efficient
Features:
- Full-coverage foil shield and drain deliver low-noise signaling
- CMP/FT6 plenum compliant for air-handling spaces (NEC 300.22(C))
- Built-in ripcord plus sequential footage marks streamline install
- Consistent performance for sensors, annunciators, and control circuits
- 300 V rating; installs from −20 °C to 75 °C without drama
- Straightforward jacket printing simplifies circuit ID at a glance
Technical Specifications
Color
White
Cable Length
250ft
Package Type
Reel
American Wire Gauge
18AWG
Conductor Type
Solid Bare Copper
CAT
CL2
Jacket Type
PVC
Shield Type
Unshielded
Voltage
300V
Number of Conductors
6
Stranding
Solid
Nominal Weight
37lbs/1000ft
Compliance
- UL1685
- UL13
- REACH/RoHS Compliant
- Sunlight Resistant
Cable Type
General Purpose Thermostat Cable
