Description

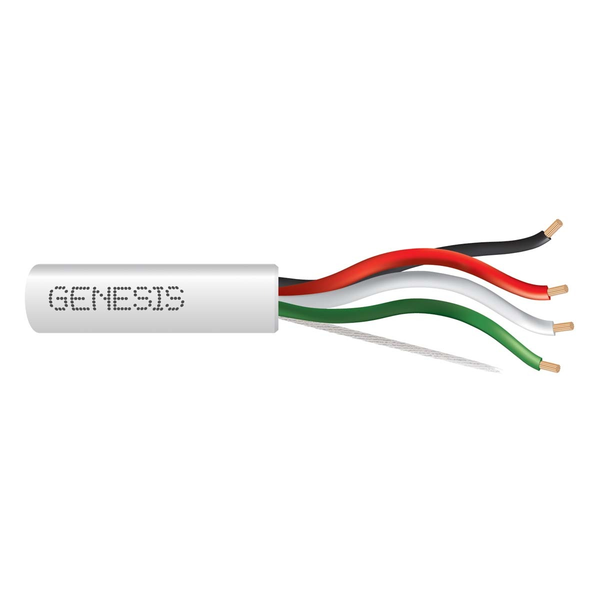

Genesis Shielded Multiconductor Cables offer a versatile solution for various applications. These shielded cables minimize electrical noise and interference to protect sensitive signals.
Features:
- Full-coverage foil shield and drain deliver low-noise signaling
- CMP/FT6 plenum compliant for air-handling spaces (NEC 300.22(C))
- Built-in ripcord plus sequential footage marks streamline install
- Consistent performance for sensors, annunciators, and control circuits
- 300 V rating; installs from −20 °C to 75 °C without drama
- Straightforward jacket printing simplifies circuit ID at a glance
Technical Specifications
Color
Natural
Cable Length
500ft
Package Type
Reel
American Wire Gauge
18AWG
Conductor Type
Stranded Bare Copper
CAT
FT6
Jacket Type
PVC
Shield Type
Shielded
Voltage
300V
Number of Conductors
8
Stranding
19Strand
Nominal Weight
57.2lbs/1000ft
Compliance
- NFPA 262
- CSA C22.2 No. 2556
- UL444
- UL1424
- UL13
- REACH/RoHS
Cable Type
CM Plenum Cable
