Description

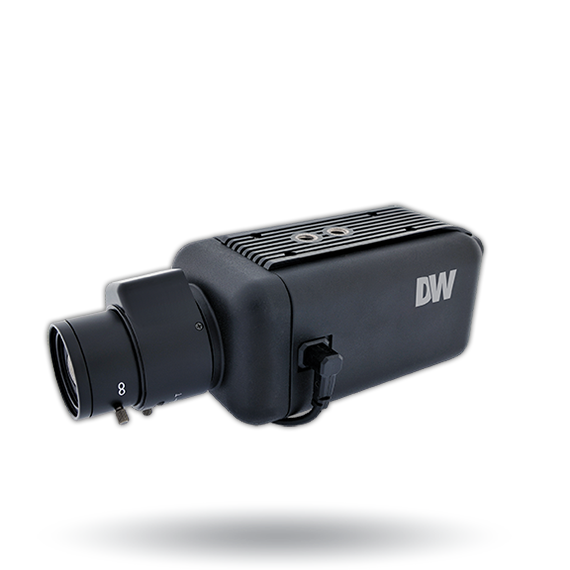

Star-Light™ Universal HD over COAX® cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP/1080p and CVBS at 960H. Star-Light™ Universal HD over Coax® cameras are engineered to work with our VMAX A1™ Universal HD over Coax® DVRs using your existing Coax infrastructure for a cost-effective, high resolution surveillance solution.
- Universal HD over Coax™ Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
- STAR-LIGHT™ Super Low Light Technology
- 2.1MP 1/3" Image Sensor at Real-time 30fps
- Compatible with C/CS Mount Lens
- True Wide Dynamic Range (WDR)
- OSD Control Via Coaxial (UTC)
- Smart DNR™ 3D Digital Noise Reduction
- True Day/Night Mechanical IR Cut Filter
- De-Fog™ Extreme Weather Image Compensation
- Highlight Masking Exposure (HME)
- Auto-Sensing 24VAC/12VDC with Line Lock
- Easy Icon Driven OSD Menu with Built-in Joystick
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Dynamic Range Compressor (DRC) Reveals Low Light Detail
- Auto White Balance (AWB)
- NDAA compliant
- 5 Year Warranty
Technical Specifications
Active Pixels
1944 (H) x 1092 (V)
Frequency
- 50Hz
- 60Hz
Image Sensor
2.1MP/1080p 1/3" CMOS sensor
Maximum Resolution
2.1MP/1080p
Minimum Scene Illumination - color
0.20 lux (color)
Scanning System
Progressive scan
Signal technology
- CVBS up to 960H
- HD-Analog
- HD-CVI
- HD-TVI
- Universal HD over Coax® technology
Focal Length
NA
Horizontal Field of View (HFOV)
NA
Lens Type
C/CS Mount Lens Compatible
3D digital noise reduction
Smart DNR™ 3D Digital Noise Reduction
Auto gain control
Auto
Backlight compensation (BLC)
Yes
Camera Control
- Pelco C
- Pelco D
Day and night
- Auto day/night
- Day (color)
- Night (B/W)
De-fog
Yes
DRC
Yes
Gamma
0.45 ~ 0.75
Mirror/flip
Yes
Motion Detection
Yes
Privacy Zones
16 programmable privacy masks
Sharpness
Yes
Shutter Mode
- Anti-Flicker
- Auto
- Manual
Shutter Speed
1/30 ~ 1/30000
Star-Light (sense up)
- Off
- x2-x32
White Balance
Yes
Wide Dynamic Range (WDR)
True WDR 100dB
Environmental Operating Humidity
10-90% (non-condensing)
Environmental Operating Temperature
-4°F ~ 122°F (-20°C ~ 50°C)
Camera Dimensions (H X W X D)
4.71" x 2.31" x 2.44" (119.7 x 58.8 x 62mm)
Camera Weight
0.70 lbs (0.32kg)
Housing
Box
Materials
Aluminum die-casting
Power Consumption
- AC24V: 2.4W
- 100m A"
- DC12V (no LED): 2.45W
- 204.16mA
Power Requirements
24 V AC
Warranty
5 Year Warranty
Certifications
- FCC
- CE
- ROHS
Warranty
5 Year Warranty
