Description

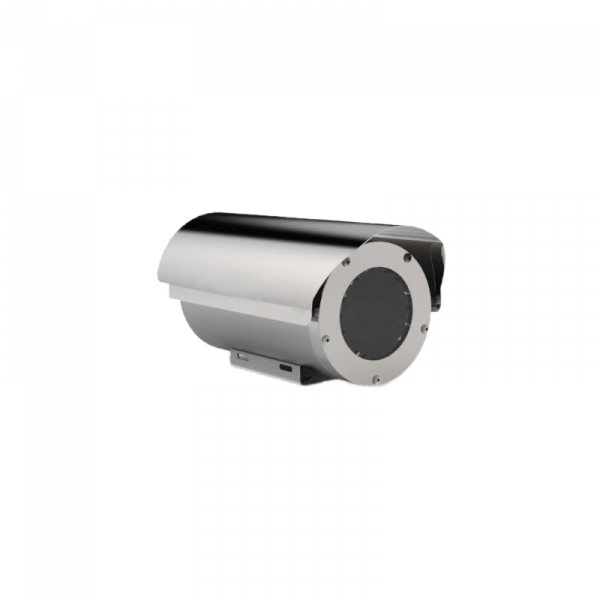

The Hanwha Vision TNO-X6320EPT0-Z is a high-performance 2 Megapixel explosion proof zoom camera designed to withstand harsh environments while delivering exceptional video quality. Featuring a 32x optical zoom lens and advanced analytics capabilities, this camera ensures reliable surveillance and monitoring in hazardous locations. Its durable construction, combined with advanced imaging technologies, makes it an ideal choice for safety-conscious installations.
Features:
- Digital Image Stabilization (DIS) with built-in Gyro sensor enhances video clarity by compensating for camera movement.
- Day & Night (ICR) functionality ensures optimal performance in varying lighting conditions.
- Wide Dynamic Range (WDR) of 150dB captures high-quality video in scenes with extreme contrast.
- Integrated video and audio analytics provide intelligent monitoring capabilities, alerting users to unusual activity.
- Constructed with electro-polished 316L stainless steel, ensuring durability and resistance to corrosion.
- Toughened glass camera window protects the lens from damage while maintaining image clarity.
Technical Specifications
Megapixel
2.4MP
Imaging Device
1/2.8" CMOS
Resolution
- 1920x1080 to 320x180
- 60fps at all resolutions (H.265/H.264)
Focal Length
4.44-142.6 mm
Lux
- Color : 0.05Lux (1/30sec
- F1.6
- 50IRE) B/W : 0.005Lux (1/30sec
- F1.6
- 50IRE)
Protocol
- ONVIF Profile S/G
- TCP/IP
- UDP/IP
- RTP(UDP)
- RTP(TCP)
- RTCP
- RTSP
- NTP
- HTTP
- HTTPS
- SSL/TLS
- DHCP
- FTP
- SMTP
- ICMP
- IGMP
- SNMPv1/v2c/ v3(MIB-2)
- ARP
- DNS
- DDNS
- QoS
- PIM-SM
- UPnP
- Bonjour
IP Rating
IP66/67
Operating Temperature
-10°C ~ +55°C (+14°F ~ +131°F)
Material
Stainless Steel
Consumption
Maximum 12.0W
