Description

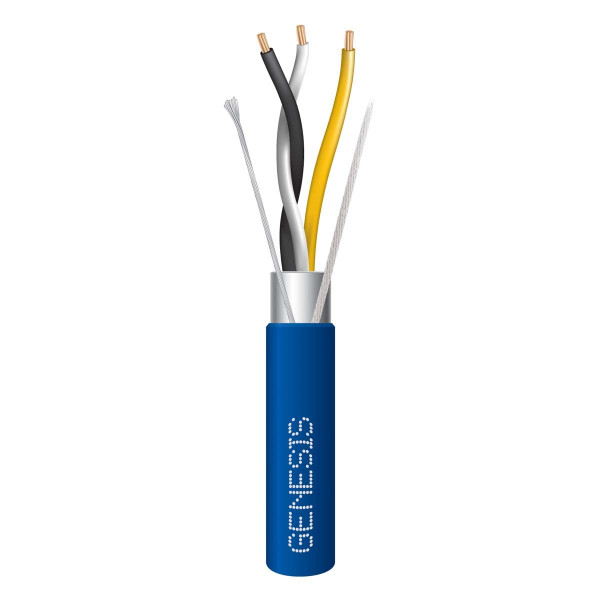

This Genesis cable features a stranded 22 AWG copper conductor-pair plus a reference conductor, an overall foil shield with a drain wire, and a plenum rating. Choose this cable for high-speed data transmission for building automation, EIA-485, BACnet, and other communication systems.
Features:
- Full-coverage foil shield and drain deliver low-noise signaling
- CMP/FT6 plenum compliant for air-handling spaces (NEC 300.22(C))
- Built-in ripcord plus sequential footage marks streamline install
- Consistent performance for sensors, annunciators, and control circuits
- 300 V rating; installs from −20 °C to 75 °C without drama
- Straightforward jacket printing simplifies circuit ID at a glance
Technical Specifications
Color
Blue
Cable Length
1000ft
Package Type
Reel
American Wire Gauge
22AWG
Conductor Type
Stranded Bare Copper
Number of Pairs
1.5Pair
Jacket Type
PVC
Shield Type
Shielded
Voltage
300V
Number of Conductors
6
Stranding
7Strand
Impedance
115Ohms
Compliance
- NFPA 262
- CSA C22.2 No. 2556
- UL444
- UL1424
- UL13
- REACH/RoHS
Cable Type
CM Plenum Cable
