Description

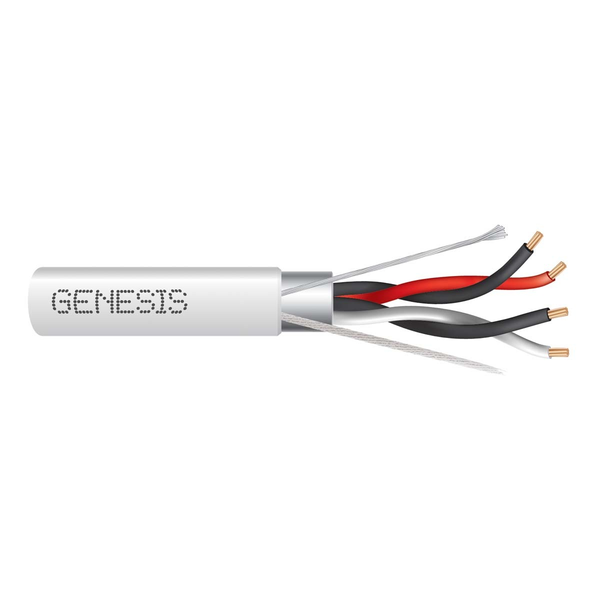

Genesis Shielded Multipair Cables offer a versatile solution for various signal and limited-power transmission applications.
Features:
- Overall foil shield with drain defeats noise and limits crosstalk
- Low-smoke CMP/FT6 plenum rating for code-driven installations
- Ripcord + footage markings cut labor and simplify jacket removal
- Stable signaling for sensitive devices (alarms, intercoms, controls)
- Rated 300 V and engineered for −20 °C to 75 °C environments
- Legible print legend keeps panels organized and reduces callbacks
Technical Specifications
Color
Natural
Cable Length
1000ft
Package Type
Pull Box
American Wire Gauge
22AWG
Conductor Type
Stranded Bare Copper
Number of Pairs
2Pair
Jacket Type
PVC
Shield Type
Shielded
Voltage
300V
Number of Conductors
4
Stranding
7Strand
Nominal Weight
19.8lbs/1000ft
Compliance
- NFPA 262
- CSA C22.2 No. 2556
- UL444
- UL1424
- UL13
- REACH/RoHS
Cable Type
CM Plenum Cable
