Description

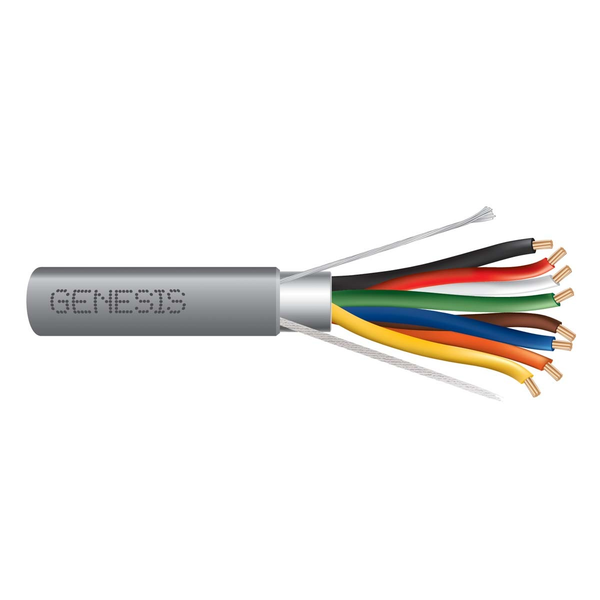

Genesis Shielded Multiconductor Cables offer a versatile solution for various applications. These shielded cables minimize electrical noise and interference to protect sensitive signals.
Features:
- Overall Foil Shield + Drain for Noise Rejection
- Riser-Rated FT4 for Safer Vertical Installs
- Stable Low-Voltage Signaling
- Easy Jacket Removal with Ripcord
- Countdown Footage Markings
- UL/CSA Listings (Communication/Fire-Alarm)
Technical Specifications
Color
Grey
Cable Length
1000ft
Package Type
Pull Box
American Wire Gauge
22AWG
Conductor Type
Stranded Bare Copper
CAT
CL2R/FPLR
Jacket Type
PVC
Shield Type
Shielded
Voltage
300V
Number of Conductors
8
Stranding
7Strand
Nominal Weight
27.6lbs/1000ft
Compliance
- UL1666
- C22.2 FT4
- UL444
- UL1424
- UL13
- Sunlight Resistant
- REACH/RoHS
Cable Type
CM Riser Cable
