Description

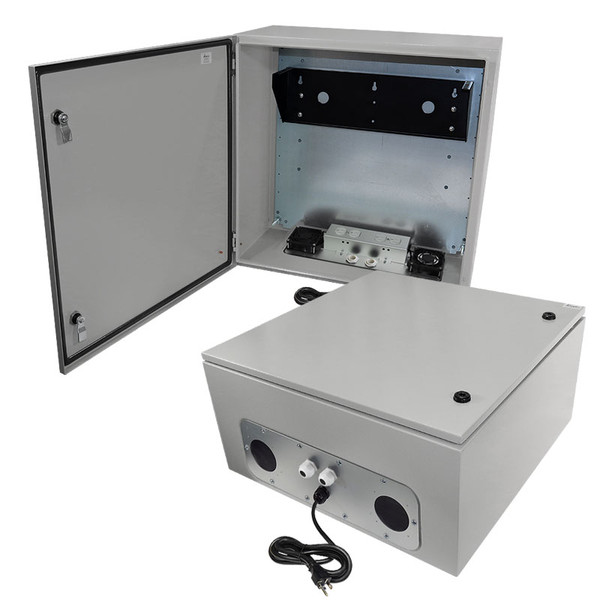

The Altelix NS242412VFA1C-RV4U 19" Rack 4U Vertical Steel Fan Cooled Weatherproof NEMA Enclosure with 120VAC Power and Equipment Plate is ideal for protecting rack mountable equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.
Features:
- Dual Thermostat Controlled Cooling Fans
- Heavy Duty Continuous Seam Welded 18 Gauge Steel Construction
- Includes 19" 4U Vertical Rack Frame and Blank Zinc Coated Galvanized Steel Equipment Mounting Plate
- Dual quarter-turn door latches with key
- Epoxy polyester textured light gray powder coat finish
- NEMA Type 3R, 3RX / IP24 Rated
Technical Specifications
Material
Seam Welded 18 Gauge (1.2mm) Steel
Color
Light Gray (RAL 7035)
Voltage
120VAC
Load Capacity
10A @ 120VAC
Fan
- On: 100°F (38°C) ±6°F
- Off: 79°F (26°C) ±9°F
Outer Dimensions
23.6 x 23.6 x 11.8 Inches (600 x 600 x 300 mm)
Inner Dimensions
18.0 x 20.0 x 10.3 Inches (457 x 508 x 260 mm)
IP Rating
IP24
NEMA Type
- NEMA 3R
- NEMA 3RX
Rack Units
4U
Mount Type
Vertical Mount
Load Bearing
75 lbs (34kg)
Plate Material
18 Gauge (1.2mm) Zinc Coated Galvanized Steel
Warranty
2 Year Warranty
Warranty
2 Year Warranty
