Description

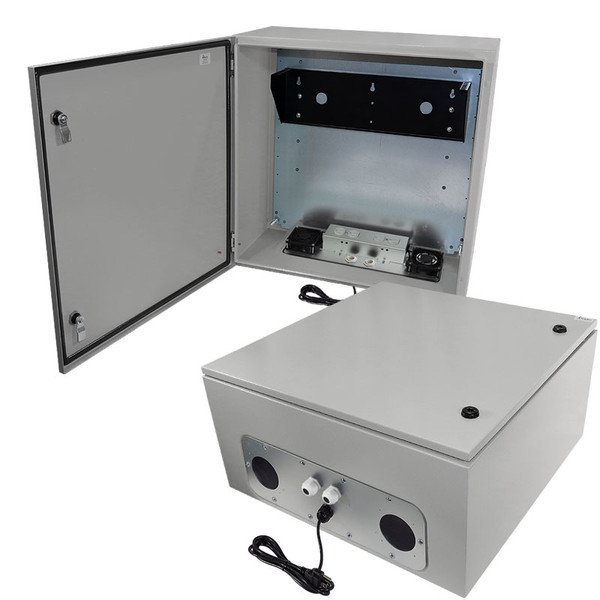

The Altelix NS242416VFA1C-R6U 19" Rack 6U Steel Fan Cooled Weatherproof NEMA Enclosure with 120VAC Power and Equipment Plate is ideal for protecting rack mountable equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.
Features:
- Dual Thermostat Controlled Cooling Fans
- (4) Pre-Wired 120VAC Outlets with 5 Foot Power Cord
- Heavy Duty Continuous Seam Welded 18 Gauge Steel Construction
- Includes 19" 6U Rack Frame and Blank Zinc Coated Galvanized Steel Equipment Mounting Plate
- Dual quarter-turn door latches with key
- Epoxy polyester textured light gray powder coat finish
Technical Specifications
Material
Seam Welded 18 Gauge (1.2mm) Steel
Color
Light Gray (RAL 7035)
Voltage
120VAC
Load Capacity
10A @ 120VAC
Fan
- On: 100°F (38°C) ±6°F
- Off: 79°F (26°C) ±9°F
Outer Dimensions
23.6 x 23.6 x 11.8 Inches (600 x 600 x 300 mm)
Inner Dimensions
18.0 x 20.0 x 10.3 Inches (457 x 508 x 260 mm)
NEMA Type
- NEMA 3R
- NEMA 3RX
Rack Units
6U
Rack Depth
19inch
Cord Length
5 Feet (1.5m)
Plate Dimensions
22.2 x 21.6 In. (565 x 550 mm)
Warranty
2 Year Warranty
