Description

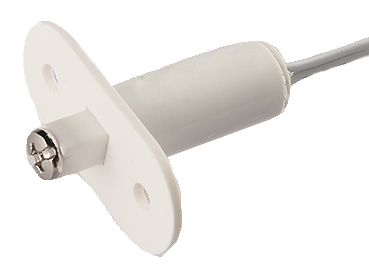

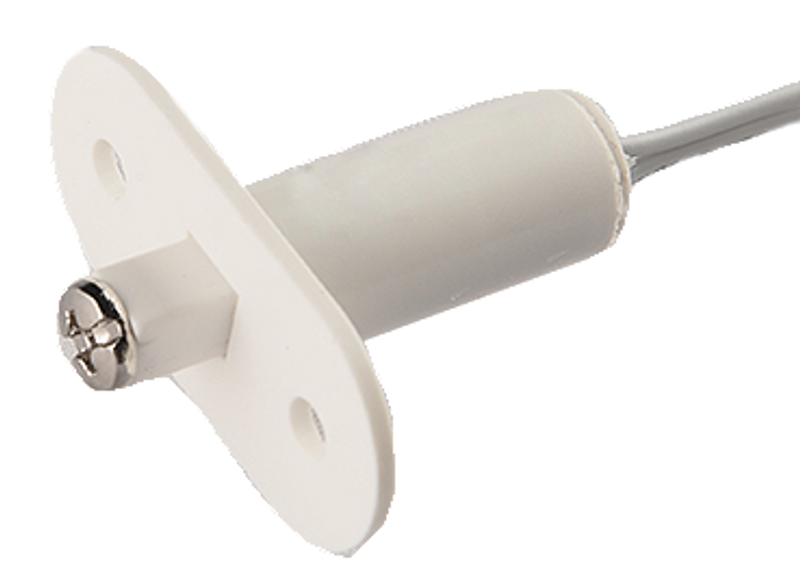

The TANE-3/8 ASH is a recessed magnetic contact designed for security systems.
Features:
- The screw can be adjusted to fine-tune the gap between the reed switch and the magnet, allowing for precise alignment and optimal performance.
- The reed switch is normally open, meaning it closes when a magnetic field is applied, indicating that the door or window is closed.
- It comes with standard 12-inch (305mm) 22 AWG leads, with longer leads available as an option.
Technical Specifications
Color
White
Operation Gap
NA
Loop Type
Closed
Reed Form
Normally Open
Max Framerate
1
Coil Resistance
100
Voltage
AC24/DC24
Current
0.1
Operating Temperature
-40°C to +60°C
Dimensions
35″×1.2″
Compliance
- CE
- RoHS
- CUL US Listed
