Description

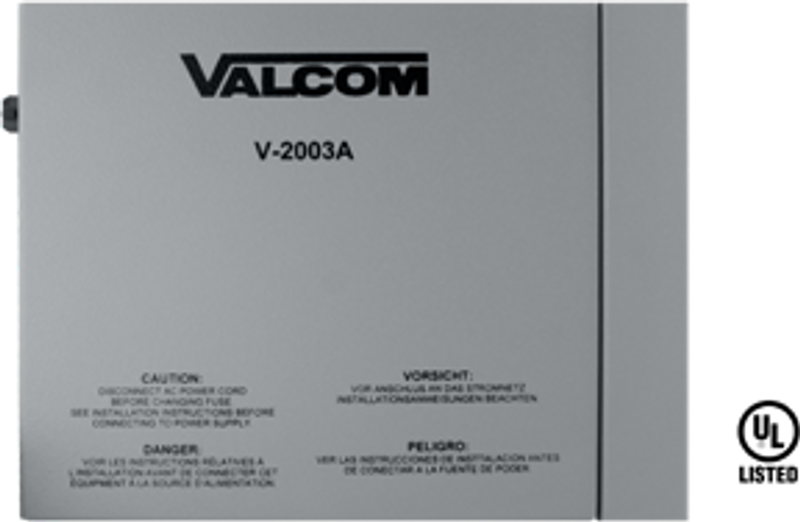

The V-2003A Page Control provides telephone system access to three zones of one-way paging and has built in tones for steady, warble and alert. The V-2003A allows you to conduct an emergency page override for priority messages.
Features:
- Loop start trunk port and page port access
- One-way all call (one page to all zones)
- Pulse & tone dial
- Background music mutes only in zone being paged
- Emergency page override for priority announcements
- Built-in tones: steady tone, warble tone, alert tones
Technical Specifications
Impedance
600 Ohms
Sound Pressure
-10 dBm
Voltage
24VDC
Current
1A
Operating Temperature
+32 to +104 ºF (0 to +40 ºC)
Operating Humidity
0 to 85% non-condensing
Material
Aluminum Alloy
Color
Gray
Dimensions
7.10in H x 10.00in W x 3.00in D (18.03cm x 25.4cm x 7.62cm)
Package Weight
7.70lbs (3.47kg)
Compliance
UL Listed
Mount Type
Wall Mount
Warranty
1 Year Warranty
