Description

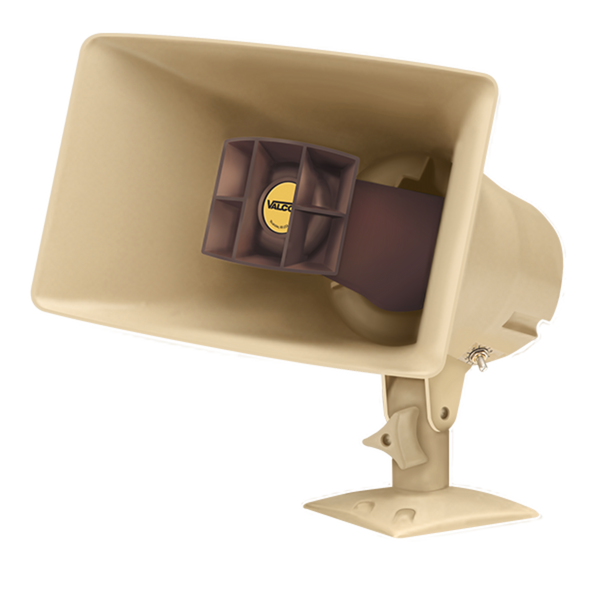

The Valcom V-1038, 30-Watt High-Efficiency One-Way Horn is a self-contained 30-Watt paging systems that incorporates a built-in 30-Watt amplifier, volume control and a high-efficiency horn. The V-1038 is typically used with a Valcom page control and can expand the capability of telephone systems which have limited paging capabilities. The V-1038 can be used indoor/outdoor.
Features:
- Built-in 30-Watt amplifier
- High impact ABS housing
- Mounting base (wall or electrical mount)
- Up/down rotation
- Built-in volume control
- “I” beam clamp included
Technical Specifications
Color
Beige
Material
ABS Plastic
Impedance
600 Ohms
Sound Pressure
121 dB measured at 4ft (1.22m) on axis with a -10dBm input at 1 kHz
Voltage
48VDC
Current
1A
Frequency
225 Hz to 14 kHz
Dispersion
120° horizontal and 90° vertical
Operating Temperature
-4 to +131 ºF (-20 to +55 ºC)
Operating Humidity
0 to 95% non-condensing
Mount Type
Wall Mount
Compliance
FCC
Consumption
30W
Warranty
1 Year Warranty
