Description

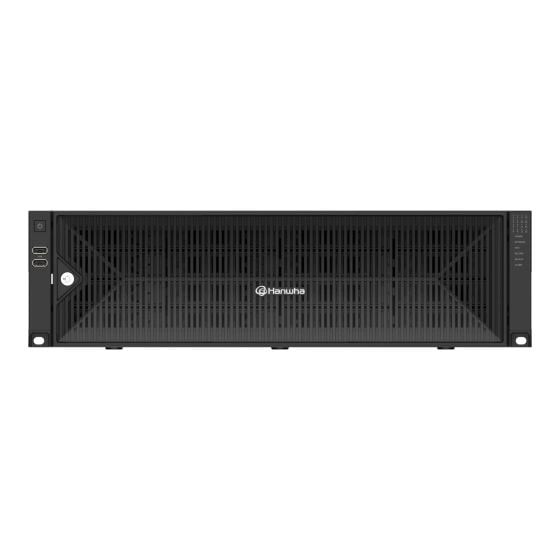

The Hanwha Vision XRN-3220B4-20TB is a powerful 8K Intel-based NVR designed for high-performance video surveillance with 32 channels and 20TB of storage. Its cutting-edge features like dual stream recording, advanced AI search capabilities, and robust RAID support ensure that you get reliable, high-resolution video recording and playback. Ideal for large-scale installations, this NVR combines efficiency and ease of use with extensive compatibility to enhance your security system.
Features:
- 32CH, 32MP resolution for ultra-clear video capturing, ensuring every detail is recorded.
- Supports 16 SATA HDD bays, allowing for up to 160TB storage capacity, accommodating extensive video footage.
- Up to 520Mbps recording and transmission bandwidth, guaranteeing smooth and seamless video streaming.
- Easy channel, event, and alarm configuration simplifies setup and management, enhancing user experience.
- Virtual channel view enables efficient monitoring and management of multiple camera streams.
- Dynamic layout support offers flexible display options to suit various surveillance needs.
Technical Specifications
Channels
32
Megapixel
32MP
Display Type
Dual Display
OS
Embedded Linux
Video Compression
- H.265
- H.264
- MJPEG
Protocol
- IPv4
- IPv6
- TCP/IP
- UDP/IP
- RTP (UDP)
- RTP (TCP)
- RTSP
- NTP
- HTTP
- DHCP (Server
- Client)
- SMTP
- ICMP
- IGMP
- ARP
- DNS
- DDNS
- uPnP
- HTTPS
- SNMP
- ONVIF (Profile-S)
- SUNAPI(Server
- Client)
Bandwidth
Max. 520Mbps
Audio Compression
- G.711
- G.726
- AAC(16/48KHz)
Audio Type
2-Way
Ethernet Port
- RJ-45 3EA (LAN/WAN
- 1Gbps)
USB Port
- 4EA(Front 2 x USB 2.0
- Rear 2 x USB 3.0)
Operating Temperature
0°C to +40°C(32℉ to 104℉)
Operating Humidity
20% ~ 85% RH
Voltage
100-240 VAC
Consumption
Max. 265W
Color
Black
