Hanwha Vision

SKU PNM-C32084RQZ-8XE4T-W PNM-C32084RQZ-8XE4T-W

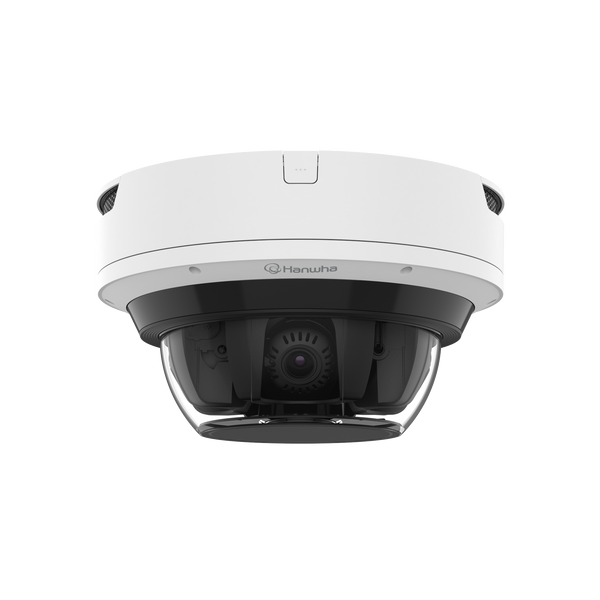

4 Channel AI Multi-Sensor with WAVE VMS, 4.38-9.33mm Lens, WiseIR - PNM-C32084RQZ-8XE4T-W

Product Rating Product Rating Product Rating Product Rating Product Rating 0 Reviews
Write a Review
Price:
$9,690.00
  • Weight:
    16.30 LBS
  • Shipping:
    Calculated at Checkout

Key features

  • Channels
Sale assistant
Contact our Sales Team for a tailored experience
Adding to cart… The item has been added
?Special Order Information
Sign In for Dealer Pricing Become a BLVS Customer

Description

The SolidEDGE multi-sensor camera from Hanwha Vision features a built-in WAVE VMS server powered by the NVIDIA Jetson platform.

Features:

  • Capable of recording up to 16 video streams
  • Wisenet WAVE VMS embedded
  • 360° Analytics events: Defocus detection, Motion detection, Tampering, Audio detection, Sound classify cation
  • AI based WiseNRII, Auto prefer shutter control, WiseStreamIII
  • Supports hallway mode
  • Reinforced durability (IP66, IK10, NEMA4X)

Technical Specifications

Channels
4
Imaging Device
1/1.8" CMOS
Resolution
  • 3840x2160
  • 1920x1080
  • 1280x1024
  • 1280x960
  • 1280x720
  • 1024x768
  • 800x600
  • 800x448
  • 720x576
  • 720x480
  • 640x480
  • 640x360
Max Framerate
H.265/H.264: Max. 20fps MJPEG: Max. 20fps (@8MP Max. 5fps)
Lux
  • Color: 0.07Lux (F1.3
  • 1/30sec
  • 30IRE)
  • BW: 0Lux (IR LED on)
Focal Length
4.38 ~ 9.33mm
Lens Type
Varifocal P-Iris
Viewing Angle
  • H: 113° (Wide) ~ 47° (Tele)
  • V: 58° (Wide) ~ 26° (Tele)
  • D: 128° (Wide) ~ 54° (Tele)
Day/Night
Auto(ICR)
WDR
120dB
Gain
Low/Middle/High
Ethernet Port
RJ-45 (10 / 100 / 1000 BASE-T)
Video Compression
  • H.265 / H.264: Main / Baseline / High
  • MJPEG
Memory
  • 8GB RAM
  • 64GB eMMC
Material
Aluminum + PC
Compliance
  • UL 62368-1
  • CAN/CSA C22.2 NO. 62368-1
  • IEC/EN 62471
  • IEC/EN 63000
  • IEC/EN 60529 IP66
  • IEC/EN 62262 IK10
  • NEMA 250 type 4X
