Description

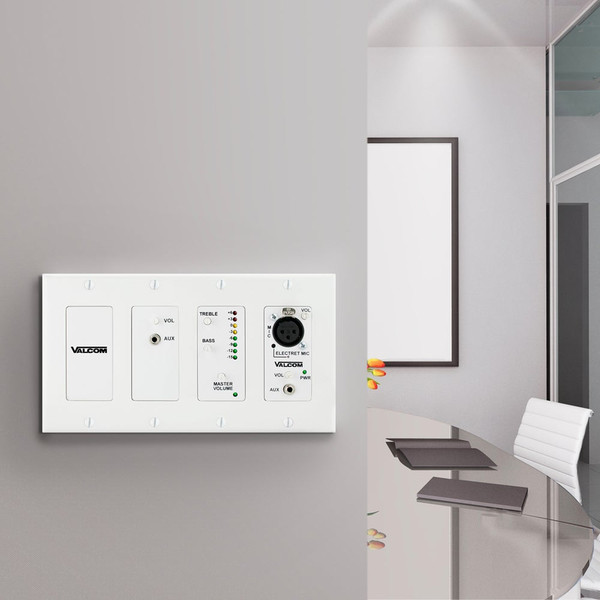

Valcom’s V-9985-W Four Channel In-Wall Mixer is a cost-effective solution that eliminates the use of expensive in-wall amplifiers. The complete sound system is ideal for conference rooms, lecture halls, restaurants, auditoriums and gymnasiums.
Features:
- Built-in compressor (Option Switch Controlled) for automatic consistent volume level adjustment even when voices vary – low to high
- One general building page input (-10dBM) overrides all other inputs
- 8 Segment LED meter for visual indication of Audio Signal Levels
- Master volume control for optimum volume adjustments & volume control for each input
- Hi Pass output for horns
- Drives 50 amplified speakers and/or horns
Technical Specifications
Impedance
- 3.5 kOhm
- 100 Ohms
Sound Pressure
-10 dBm nominal
Sensitivity
- 30 mVRMS for -10 dBm output
- 40 uVRMS (-1 dBm out)
Current
50 mA
Voltage
24VDC
Frequency
2 Hz to 20 kHz ± 1 dB
Operating Temperature
+32 to +122 ºF (0 to +50 ºC)
Operating Humidity
0-85% Non-condensing
Material
Plastic
Color
White
Dimensions
6.75in W x 4.25in H x 2.00in D (17.15cm x 10.80cm x 5.08cm)
Channels
4
Mount Type
4 Gang Electric Box
Warranty
1 Year Warranty
