Description

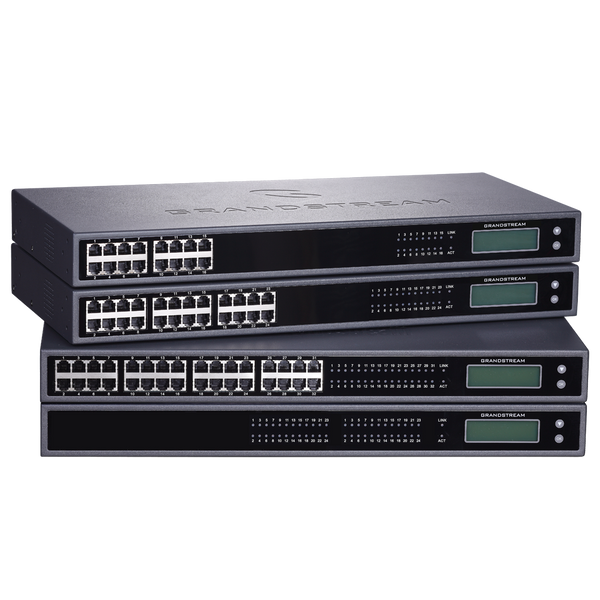

The GXW4200 high-density FXS gateway series enables businesses of all sizes to create a cost-effective hybrid IP and analog telephone system that offers the benefits of VoIP communications and takes advantage of Gigabit speeds while preserving investment on existing analog phones, fax machines and legacy PBX systems. The GXW4200 series includes 16/24/32/48 FXS ports, a Gigabit network port and features broad interoperability with most service providers, soft-switches and SIP-based environments.
Features:
- A single 10/100/1000Mbps auto-sensing RJ45 port
- TLS and SRTP security with AES encryption technology to protect calls and accounts
- Automated provisioning options include TR-069 and XML config files
- Supports simultaneous 3-way voice conferencing per port
- Failover SIP server feature automatically switches to secondary server if main server loses connection
- Supports simultaneous T.38 or pass-through fax-over-IP per port
Technical Specifications
Indicator
LED
Display Type
Backlit 128x32 graphic LCD
Audio Compression
- G.711
- G.723
- G.726-32
- G.729
- G.722
American Wire Gauge
24AWG
Protocol
- TCP/UDP
- RTP/RTCP
- HTTP/HTTPS
- ARP ICMP
- DNS DHCP NTP TFTP
- PPPoE STUN LLDP
Voltage
- Input: 100 ~ 240VAC
- Output: 24VDC
Current
6.25A
Frequency
50-60Hz
Operating Temperature
0 °C ~ 40C
Operating Humidity
10% ~90% (non-condensing)
Compliance
- FCC: Part 15 (CFR 47) Class B
- IC: ICES-003
- CE: EN55032 Class B
- EN55035
- EN IEC 61000-3-2
- EN61000-3-3
- EN IEC 62368-1
- RoHS
- C-TICK: AS/NZS CISPR 32 Class B
- AS/NZS 62368.1
- AS/CA S003.1
- ITU-T K.21 (Basic Test Level); UL 60950 (power adapter)
