Description

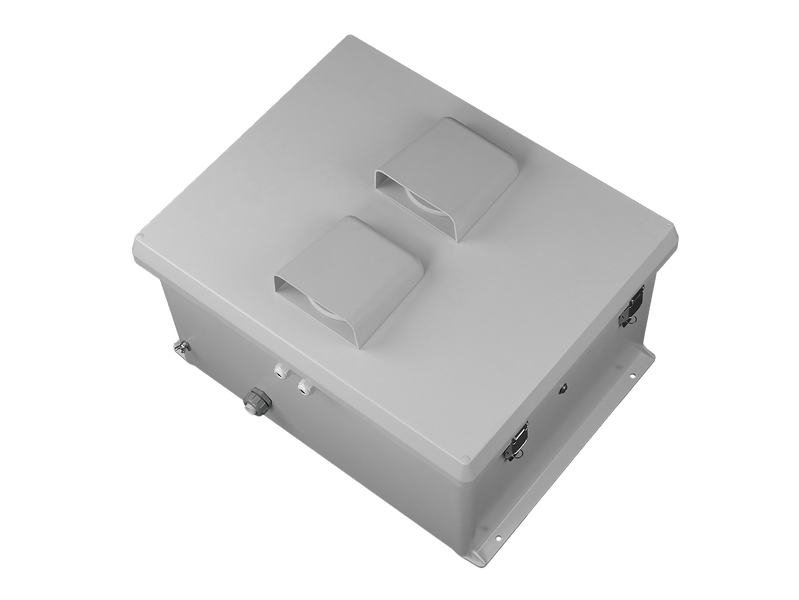

The Hana Wireless Gen 2 enclosure is a rugged weatherproof enclosure constructed from molded UV stable fiberglass reinforced polyester (FRP). It is ideal for both indoor and outdoor applications and is well suited for high temperature or corrosive environments. Every Gen 2 enclosure comes standard with a fully gasketed lid ensuring NEMA integrity, stainless steel hinge and padlockable latches for corrosion resistance and an integral mounting flange for mounting without the need for extra hardware. The color of the Gen 2 enclosure is an aesthetically pleasing machine tool gray (RAL 7035), allowing for a clean, cool, neutral appearance in any application
Features:
- Molded Fiberglass Reinforced Polyester (FRP) industrial Enclosure
- Stainless steel quick release latches with padlock hasps
- NEMA Type 4, 4X / IP66 rated
- Fully gasketed raised lid & integral mounting flange
- Horizontal configured 4U 19in rack mount
- Dimensions (16x20x15 in)
Technical Specifications
Material
FRP
Color
Tool Grey RAL 7035
Voltage
120VAC
Fans
24 Watts
Mount Type
Plate Anodized Aluminum
Dimensions
- Outside 21.3x17.3x15.6in
- Inside 19.7x15.7x15.1in
Compliance
- UL 94-5V
- RoHS
NEMA Type
- NEMA 3R
- NEMA 3RX
IP Rating
IP24
Cable Feed
1/2in Conduit Connector
