Description

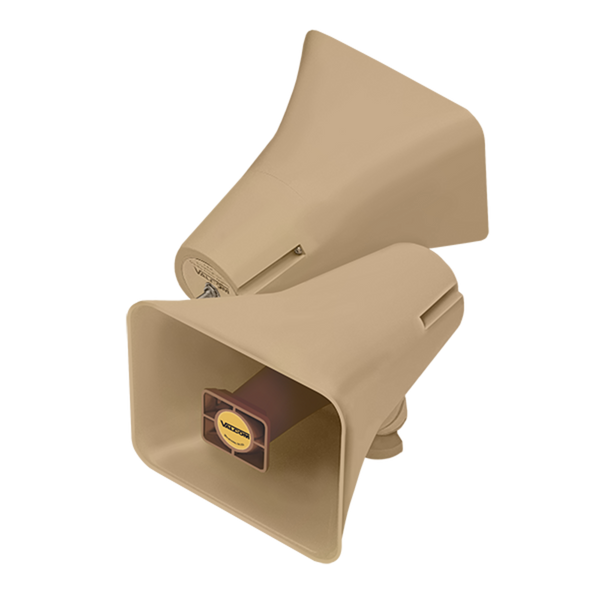

The Valcom V-1050C is a Bi-Directional, 5-Watt One-Way Amplified Horn Assembly. The V-1050C consists of two horn speakers positioned on a common mounting frame with a built-in one-way 5-Watt amplifier. The V-1050C Bi-Directional Horn is the perfect choice for high-quality voice paging, emergency alerts and loud ringing for indoor/outdoor. Includes a mount for quick and easy installation on multiple surfaces (beams, walls, electrical boxes, etc.).
Features:
- Built-in 5-Watt amplifier and volume control
- Omni-directional mounting base
- Operates on -24 Vdc power supply
- One-way paging
- I-Beam clamp Included
- Indoor/outdoor use
Technical Specifications
Color
Beige
Material
ABS Plastic
Impedance
600 Ohms
Frequency
275 Hz to 14 kHz
Dispersion
120° horizontal and 90° vertical
Operating Temperature
-4 to +131 ºF (-20 to +55 ºC)
Operating Humidity
0 to 95% non-condensing
Sound Pressure
113 dB measured at 4ft (1.22m) on axis with a -10dBm input at 1 kHz
Voltage
24VDC
Current
300 mA
Consumption
5W
Mount Type
Wall Mount
Package Weight
10.40lbs (4.68kg)
Warranty
1 Year Warranty
Warranty
1 Year Warranty
