Description

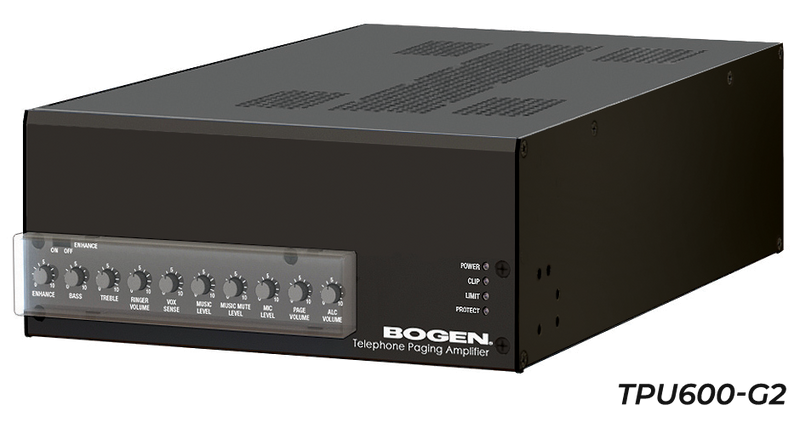

TPU600-G2 is a telephone paging amplifier rated at 600 watts. This second generation (G2) TPU amplifier is a full-featured, wall- or rack-mounted amplifier that provides inputs for a dry-loop, 600-ohm telephone page signal, a background music source, and a low impedance microphone.
Features:
- Balanced Line Output to drive ohm telephone line is available.
- Background Music Input (Phoenix connector).
- Integral adjustable level control () circuit for controlling pages made by persons with varying voice levels and paging techniques.
- Signal-activated paging channel automatically mutes background music.
- Adjustable background music muting level during a page.
- Audio Enhancement circuit increases intelligibility, improves perceived loudness (with no increase in power), and reduces listener fatigue.
Technical Specifications
Voltage
600W RMS
Frequency
20 Hz to 22 kHz ±1 dB
Distortion
Less than 1%
Sensitivity
- Music: 250mV
- Tel: -14 dBm (170mV)
- MIC: -50dBv (3.1mV)
- E.I.N. -119dBv.
Tone Control
- Bass: ±9 dB @ 100 Hz
- Treble: ±9 dB @ 10 kHz
Output Type
- Speaker: 8-ohm
- 25V
- 70V
- Telephone:600-ohm
Indicator
- CLIP
- PROTECT
- POWER
- LIMIT LEVEL LED
Overload Protection
Yes
Thermal Emissions
294 BTU/hr
Dimensions
8.00” W x 3.43” H x 13.48” D
Compliance
UL EN62368-1:2014
