Description

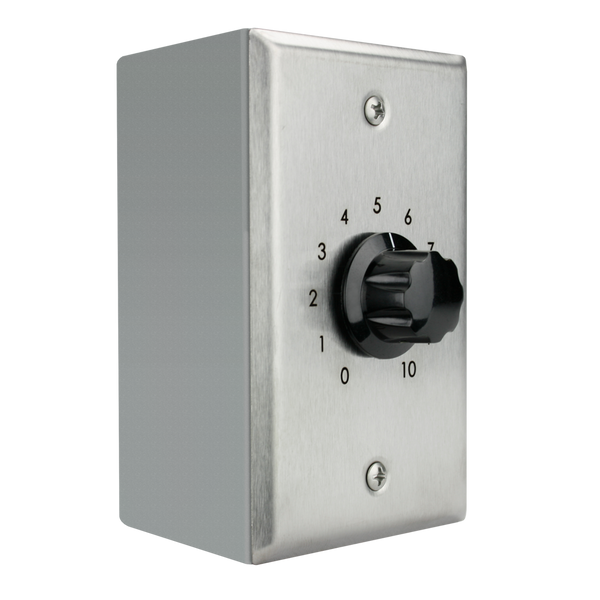

Valcom’s V-1095 70V Paging Expander allows you to expand a centrally amplified system using Valcom one-way speaker/amplifier assemblies. The V-1095 is made with a stainless-steel plate with embossed numbers and fits a single gang electrical wall box. With the V-1095 you can easily expand your 25/70/100V paging system without adding additional amplifiers.
Features:
- Easily connects to the amplifier output or anywhere on the 25/70/100 Volt or 8 Ohm/4 Ohm line
- No costly amplifiers or heavy gauge cable required
- Endless expansion using Valcom speakers or horns
- Brushed stainless steel plate
- Embossed markings from 0 to 10
- Single gang surface mount box included
Technical Specifications
Color
Gray
Impedance
10 k Ohm
Frequency
50 Hz to 20 kHz + 3 dB
Mount Type
- Wall Mount
- Surface Mount
Material
Stainless Steel
Dimensions
4.44in H x 2.75in W x 2.88in D (11.28cm x 6.90cm x 7.32cm)
Package Weight
3.10lbs (1.40kg)
Voltage
70 VDC
Warranty
1 Year Warranty
