Description

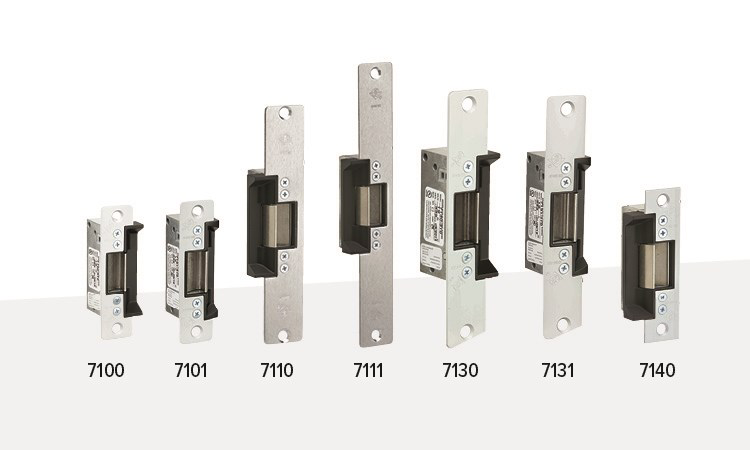

Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. For use in aluminum, hollow metal, or wood applications.
Features:
- Flat
- 24V
- AC Intermittent
- Fail-Safe
- Clear Anodized (628)
- 1-1/2"
Technical Specifications
Faceplate Type
- Flat
- 1¼″ × 4‑7/8″
Finish
Clear anodized (628)
Case Material
Zinc‑aluminum alloy
Case Size
1″ × 3‑3/8″ × 1‑5/8″
Strike Opening
5/8″ × 1‑7/16″ × 1/2″
Latchbolt Projection
1/2″–5/8″
Bolt Keeper
Stainless steel
Lip (–00)
Standard lip
Voltage
24VDC continuous
Current (24VDC)
0.17A
AC Option
24VAC intermittent (0.74A)
Duty Type
- Fail‑safe/fail‑secure
- field-selectable
Certifications
- UL1034
- UL294
Grade
ANSI/BHMA Grade1
Monitoring Option
Optional Form‑C switches
Lip Extensions
Dash –01 to –13 kits
Non‑handed
Suitable for left or right hand doors
Mounting Kit
- Includes screws
- clips
- shims
Fit Door Thickness
- 1‑3/4″ nominal
- shimmed via lip kits
Door Frame Types
- Aluminum
- hollow metal
- wood
AC/DC Adapter
Use 4603 rectifier for AC‑to‑DC
Accessories Compatibility
- Lip kits & monitoring
- power accessories
Warranty
5‑Year Limited
Warranty
5‑Year Limited Warranty
