Description

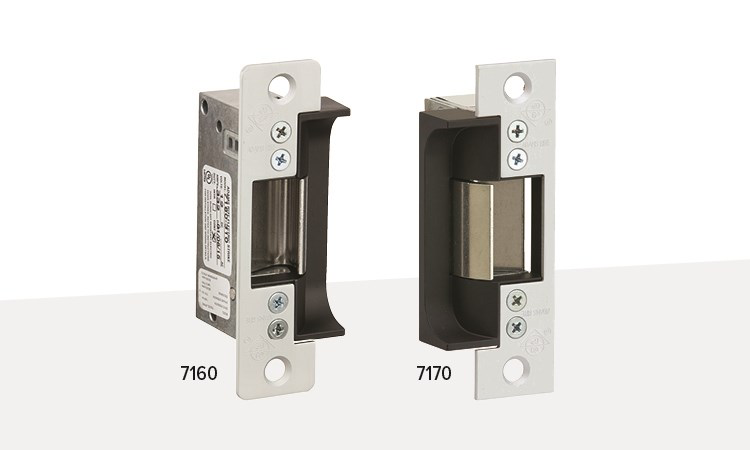

7160, 7170 Electric Strikes with 4-7/8" [123.8 mm] faceplates are designed for use with mortise or cylindrical type locksets with up to 3/4" [19.1 mm] latchbolt projection without deadbolt. 7160 Electric Strikes are for use in aluminum applications. 7170 Electric Strikes are for use in hollow metal or wood applications.
Features:
- cylindrical lockset
- 12V DC, continuous duty
- Fail-secure
- 5/8" x 1-7/16" x 5/8", stainless steel keeper
- 1-1/4" x 4-7/8", flat, clear anodized (628)
- UL 1034, UL 294
Technical Specifications
Function
- Electrically unlocked (fail‑secure)
- field‑convertible to fail‑safe
Door Type
Hollow metal or wood jambs
Compatible Latchbolt
- Mortise or cylindrical locksets
- up to ¾″ (19.1mm) projection
Lip Extension ("A")
1‑1/16″ or less (standard lip)
Case Material
Zinc-aluminum alloy
Case Dimensions
Approx. 1″ × 3‑3/8″ × 1‑7/8″ deep (25.4 × 85.7 × 47.6mm)
Faceplate Size
- 1¼″ × 4‑7/8″ (31.8 × 123.8mm)
- flat with square corners
Faceplate Material
- Aluminum
- clear anodized (628) finish
Latch Retainer Material
Stainless steel keeper jaw
Strike Opening Dimensions
5/8″ × 1‑7/16″ × 5/8″ deep (15.9 × 36.5 × 15.9mm)
Latchbolt Projection
¾″ (19.1mm)
Voltage
12V AC or DC
Current Draw (DC)
0.33A @ 12VDC – silent
Current Draw (AC)
1.42A @ 12VAC – intermittent “buzz”
Current Draw (24V DC/AC)
0.17A / 0.74A respectively
Field Convertible Duty
- Fail‑secure/fail‑safe convertible
- AC not continuous
Compliance – Burglary
UL1034 burglary‑resistant listed
Compliance – Access Control
UL294 6th Edition listed
ANSI/BHMA Grade
ANSI/BHMA TypeEO9321 (Grade1)
Package Contents
- Strike body
- mounting clips
- adhesive shims
- screws
Finish
Clear anodized (628)
Warranty
5‑Year Limited
Warranty
5‑Year Limited Warranty
