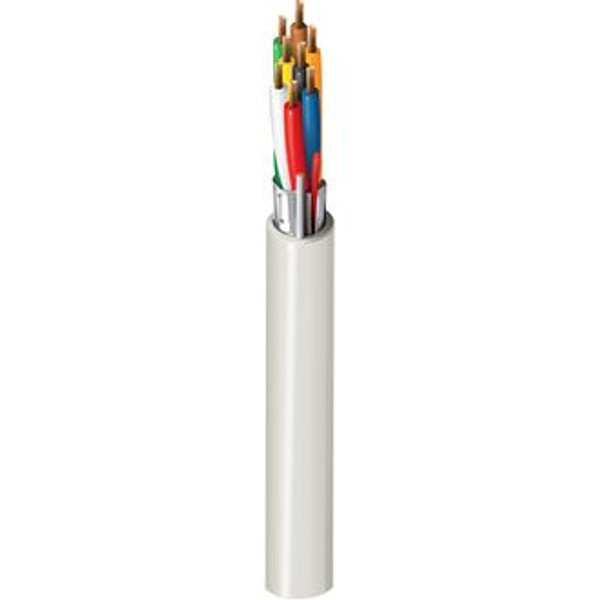

8 Conductor 22 Gauge Stranded Shielded PVC Jacket 500ft - Grey 3271GY0500

Stock Availability

in stock

West Penn Wire

SKU 3271GY0500 3271GY0500

8 Conductor 22 Gauge Stranded Shielded PVC Jacket 500ft - Grey 3271GY0500

Product Rating Product Rating Product Rating Product Rating Product Rating 0 Reviews
Write a Review
Price:
$189.50
  • Weight:
    22.00 LBS
  • Shipping:
    Calculated at Checkout

Key features

  • American Wire Gauge
  • Number of Conductors
  • Conductor Stranding
  • Conductor Type
  • Insulation Type
  • Shielding
  • Color
Sale assistant
Contact our Sales Team for a tailored experience
(718) 298-4000 Email us
Adding to cart… The item has been added
?Special Order Information
Sign In for Dealer Pricing Become a BLVS Customer
SIGN IN

Technical Specifications

American Wire Gauge
22
Number of Conductors
8
Conductor Stranding
7x30
Conductor Type
Bare Copper
Nominal Direct Current Resistance
17 Ohm/1000ft
Insulation Type
Thermoplastic
Insulation Color Code
  • 1.Black
  • 2.Red
  • 3.White
  • 4.Green
  • 5. Brown
  • 6.Blue
  • 7.Orange
  • 8.Yellow
Shielding
100% Aluminum Foil
Pull Tension
78 lbs
Bend Radius
1.638 in
Compliance
RoHS
Dimensions
13.25 x 13.25 x 11
Weight
22 LBS
Color
White

Technical Specifications

American Wire Gauge
22
Number of Conductors
8
Conductor Stranding
7x30
Conductor Type
Bare Copper
Nominal Direct Current Resistance
17 Ohm/1000ft
Insulation Type
Thermoplastic
Insulation Color Code
  • 1.Black
  • 2.Red
  • 3.White
  • 4.Green
  • 5. Brown
  • 6.Blue
  • 7.Orange
  • 8.Yellow
Shielding
100% Aluminum Foil
Pull Tension
78 lbs
Bend Radius
1.638 in
Compliance
RoHS
Dimensions
13.25 x 13.25 x 11
Weight
22 LBS
Color
White

Datasheet
