Description

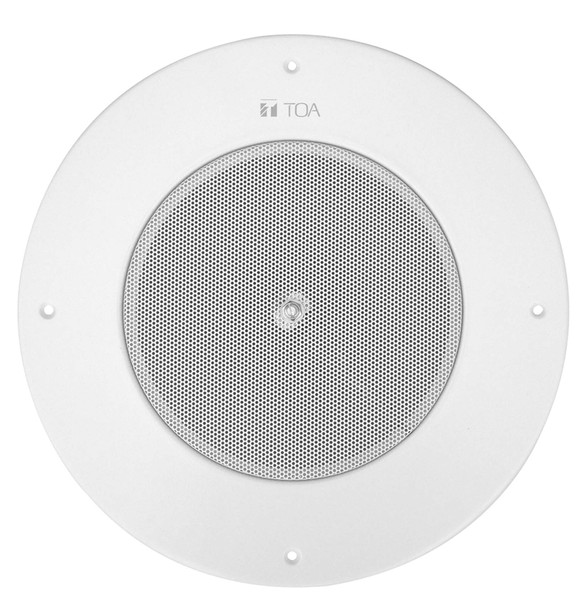

The PC-580RVU is designed to fill the need for a high-performance, cost effective ceiling speaker for use in Mass Notification Systems, Voice Evacuation, Emergency Paging, and everyday Paging and Background Music requirements.?The PC-580RVU speaker meets UL 2572 (ULC S541, UL 1480 UUMW) (Fire Alarm Signaling) and UL 2043 (use in air handling spaces) standards when using the HY-BC580U Back Can.
Features:
- 8” in-ceiling speaker for high-quality paging applications
- Center-grille volume adjustment potentiometer
- Cost effective design
- 25V & 70V transformer taps up to 5W
- Fits standard ceiling-speaker template
- ULC S541, UL 1480 UUMW and UL 2043 standards
- Unique “monocoque” design provides better structural integrity
- Optional UL-rated HY-BC580U
Technical Specifications
Impedance
- 70.7 V line: 1 kΩ (5 W)
- 2 kΩ (2.5 W)
- 5 kΩ (1 W)
- 8.3 kΩ (0.6 W)
- 16.6 kΩ (0.3 W) 25 V line: 125 Ω (5 W)
- 250 Ω (2.5 W)
- 625 Ω (1 W)
- 1 kΩ (0.6 W)
- 2 kΩ (0.3 W)
Voltage
70.7-25VDC
Sensitivity
- 97 dB ( 1 W
- 1 m)
Frequency
50 Hz - 16.5 kHz
Speaker Size
200 mm ( 8")
SpeakerType
Dual Cone Type
Connector Type
Push wire connection ( Bridging terminal-2 branch type)
Operating Temperature
-10 ·c to +50 ·c (14 'F to 122 'F)
Material
Steel Plate
Color
White
Dimensions
ø324 x 103(D) mm (12.76" x 4.05")
Weight
1.65 kg (3.64 lbs)
Compliance
- ULC S541
- UL 1480 UUMW and UL 2043
Warranty
5 Years Warranty
