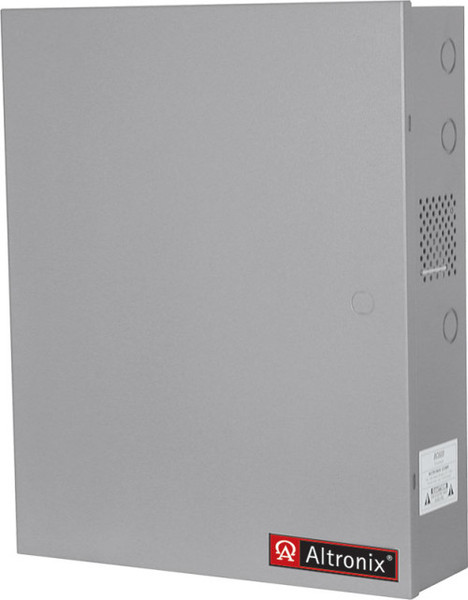

Description
Altronix ACM series distribute and switch power to access control systems and accessories. They convert a 115VAC, 60Hz input into eight (8) independently controlled 12VDC or 24VDC fuse protected outputs. These power outputs can be converted to dry form “C” contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc.
Features:
- Eight (8) independently controlled outputs Output options: a) Eight (8) Fail-Safe and/or Fail-Secure power outputs; b) Eight (8) form “C” 5A rated relay outputs; c) Any combination of the above
- Eight (8) auxiliary power outputs (unswitched)
- Filtered and electronically regulated outputs
- Supervision: - AC Fail - Battery Fail and Battery Presence
- Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs
- Alarm output relay indicates that FACP input is triggered
Technical Specifications
Voltage
- Input: 115VAC
- 60Hz
- Output: 12VDC
Current
3.5A
Surge Protection
3.5A
Battery
Up to two (2) 18AH / 12VDC
Indicator
LED
Operating Temperature
0ºC to 49ºC (32ºF to 120ºF)
Operating Humidity
85% +/– 5%
BTU
24VDC: 37 BTU/Hr
Compliance
UL: UL294 Access Control System Units cUL: CSA C22.2 No.205 Signal Equipment
Warranty
Lifetime Warranty
