Description

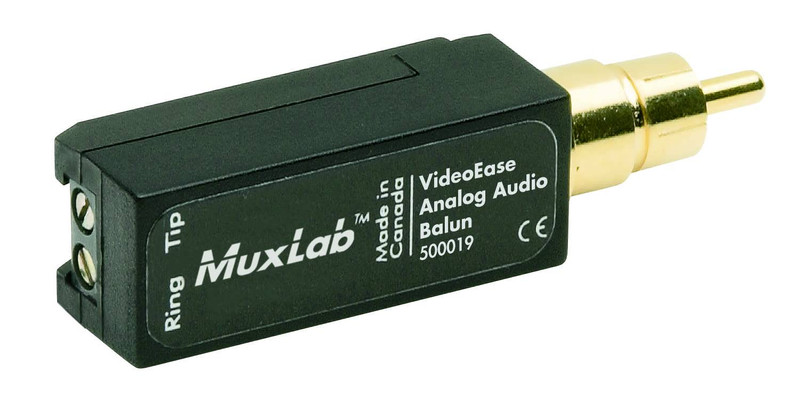

The MuxLab Analog Audio Balun (500019) allows any unbalanced audio signal to be transmitted via a single Cat5e/6 to distances of up to 5,000ft / 1.5km. Used in pairs, the Audio Balun eliminates costly and bulky coax cable, allowing consumer and commercial audio equipment to be connected using standard premises wiring techniques.
Features:
- Extend audio signal distances up to 5,000ft / 1.5km via single Cat5e/6
- Frequency response: 60Hz to 20kHz (up to 1,000ft / 305m); 100Hz to 20kHz (to max distance)
- Gold plated RCA male connector
- This product features MuxLab’s Limited Lifetime Warranty – see website for more information
- Compatible with MuxLab parts: 500028/F/WP-US/WP-UK, 500033/WP-US/WP-UK
- US Design Patent: # D495,320
Technical Specifications
Bandwidth
DC to 25 MHz
Frequency
60Hz - 20 kHz
Impedance
- Source: 100 to 600 Ω
- Receiver: 10 kΩ to 100 kΩ
Connector Type
- One (1) RCA-Male connector
- Two (2) screw terminals
Operating Temperature
0° to 55° C
Operating Humidity
up to 95%
Material
Fire Retardant Plastic
Compliance
- FCC
- CE. US Design patent # D495
- 320
Warranty
Lifetime
Warranty
Lifetime Warranty
