Description

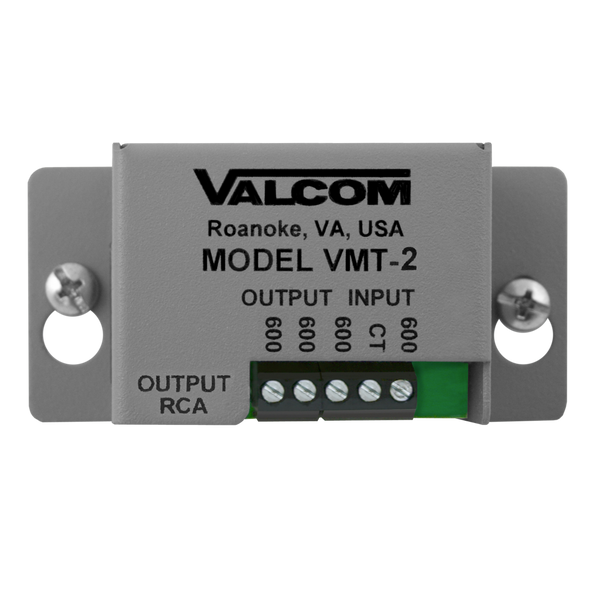

Valcom’s Audio Isolation Transformer may be used for magnetically coupling line level audio. Common uses include isolating ground references from one audio circuit to another.
Features:
- Magnetically Coupling Line Level Audio
- Isolating Ground References From One Audio Circuit to Another
- Convenient screw terminal connectors
Technical Specifications
Color
Gray
Impedance
- Input: 600 Ohms nominal
- Output: 600 Ohms nominal
DC Resistance
- Audio input: 65 Ohms +/- 15%
- Audio output: 55 Ohms +/- 15%
Frequency
50 Hz – 20 kHz
S/N Ratio
1:1 +/- 5%
Operating Temperature
-4 to 131 °F (-20 to 55 °C)
Dimensions
1.75in H x 3.75in W x 1.25in D (4.45cm x 9.53cm x 3.18cm)
Package Weight
2.40lbs (1.08kg)
Mount Type
Wall Mount
Sound Pressure
+/- 3 dB
Warranty
1 Year Warranty
