Description

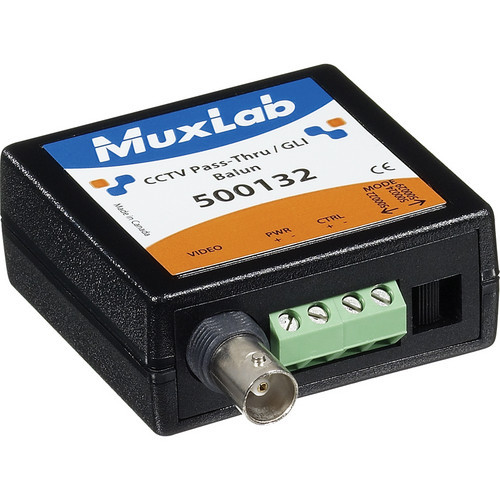

The 500132 CCTV Pass-Thru/GLI Balun allows transmission of video, remote power, and PTZ control via one Cat5E/6 UTP (Unshielded Twisted Pair) cable. Providing a hassle-free cabling solution, the balun connects directly to CCTV cameras, monitors, switchers, sequencers, multiplexers, IP encoders, DVRs, and other CCTV equipments.
Features:
- Ground Loop Isolation on Each Port
- Color Signals up to 2200' via Cat5E/6
- Pass-Thru - Remote Power up to 350'
- PTZ Control Transmits up to 4000'
- Color Signals up to 1200' via Cat3
- Power-Thru or Pass-Thru Mode Switch
Technical Specifications
Bandwidth
20 Hz to 8 MHz
Impedance
- Input: 75 ohms (BNC)
- Output: 100 ohms (RJ45)
Transmission Distance
- Color: Cat 3 - 1200' (365m)
- Cat 5E/6 - 2200' (670m)
Voltage
50V
Current
3A
Operating Temperature
32 - 131°F (0 - 55°C)
Operating Humidity
up to 95%
Material
ABS Fire Retardant Plastic
