Description

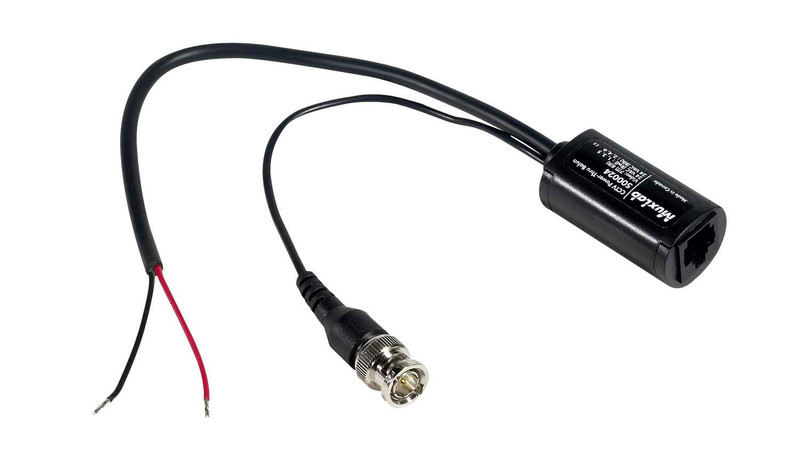

The CCTV Power-Thru Balun allows video and remote power to be transmitted via one 4-pair Cat5e/6 cable, eliminating the need to install multiple cables for more efficient cabling in the CCTV security and surveillance environment. The Power-Thru Balun may be used in pairs or in conjunction with standard twisted pair cross-connect devices and other MuxLab CCTV baluns such as the 500000, 500009, 500015 and 500023.
Features:
- Combines video and remote power under one 4-pair Cat5e/6 cable for more efficient cabling
- Video up to 2,200 ft (670m) via Cat5e/6 UTP
- Remote power up to 500ft (170m)@ 24VAC/5V via three (3) twisted pairs
Technical Specifications
Bandwidth
DC to 8 MHz
Impedance
- Input: 75 ohms (BNC)
- Output: 100 ohms (RJ45)
Transmission Distance
- Cat 3 –1
- 200 ft (365m); Cat 5 – 2
- 200 ft. (670m)
Voltage
50V
Current
4.5A
Operating Temperature
32 - 131°F (0 - 55°C)
Operating Humidity
up to 95%
Material
ABS Fire Retardant Plastic
Warranty
Lifetime Warranty
