Description

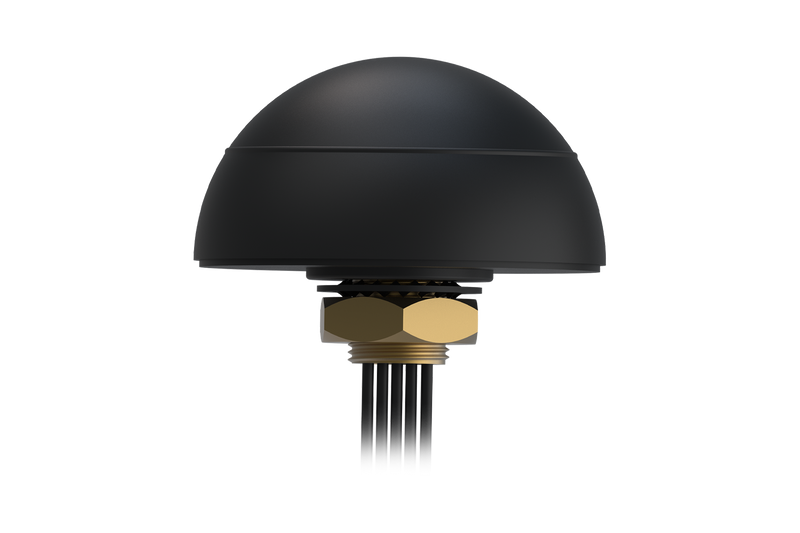

The PR1KCL28 integrates five antennas into a single black radome - 4x4 MIMO LTE and GNSS. The antenna is LTE 4G ready with coverage over the 698 - 960 MHz, and 1710 - 2690 MHz cellular frequencies. It also features GNSS supporting 1575.2 - 1610 MHz.
Features:
- Cellular antenna for 4G and 5G networks with WiFi and GNSS
- 4x4 MIMO LTE with 698 to 960 and 1710 to 2690 MHz frequency range
- GNSS supports 1575.42 - 1610 MHz frequency range
- SMA male connectors
Technical Specifications
Warranty
2 Year Warranty
Mount Type
Screw Mount
IP Rating
IP65
Material
Plastic
Cable Length
3000mm
Operating Temperature
-40 ~ +85 °C
Frequency
- LTE 698 - 960
- 1710 - 2690 MHz
- GNSS 1575.42 ± 3 MHz
Gain
- LTE 3.0 dBi
- GNSS 28 ± 2 dB
Impedance
50 O
Connector Type
- LTE 4x SMA Male
- GNSS SMA Male
Voltage
3-5 VDC
Current
<15 mA
Compliance
RoHS
Durability
UV Resistant
Warranty
2 Year Warranty
