Description

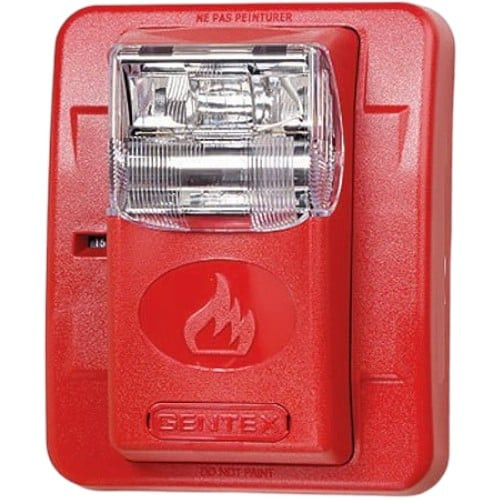

The Commander3 Series wall mount, indoor, low profile horn/strobe offers dependable audible and visual alarms at the lowest current draw available. Available in 24 VDC and 12 VDC models and with field selectable tones. The Commander3 Series ships with a die cast metal mounting bracket that includes the SuperSlide® and Checkmate® features. The Commander3 is listed to ANSI/UL 464 and ANSI/UL 1971. The 24 VDC models are CAN/ULC listed.
Features:
- 24V DC units have field selectable candela options of 15, 30, 60, 75 and 110
- GEH Horn is available in 12V DC or 24V DC
- InstantVoltageVerification
- Super-Slide Bracket, ease of supervision testing
- Synchronize strobe and horn with GentexAVSM control module
- Prewire entire system, install mounting bracket, then install signals
Technical Specifications
Color
Red
Application
- Evacuation
- Indoor
Connectivity Technology
Wired
Mount Type
Wall Mount
Lens Color
Clear
Voltage
24VDC
American Wire Gauge
12-18AWG
Compliance
- NFPA 72
- Americans with Disabilities Act (ADA)
- IBC/IFC/IRC
- Quality Management System is certified to: ISO 9001:2008
