Description

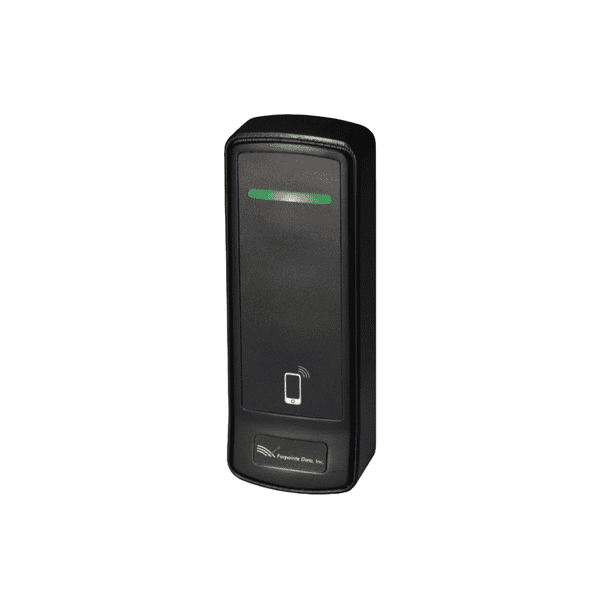

Conekt Mobile-Ready Readers interface with a wide range of electronic access control systems by complying with either legacy Wiegand or bi-directional Open Supervised Device Protocol (OSDP). The stylish mullion-mount reader comes with a single-gang box mounting plate, providing flexible installation options. Conekt readers are capable of reading Conekt mobile credentials from within the Conekt Wallet App (employing BLE 2.4-GHz RF technology), as well as traditional contactless smart cards (at the 13.56-MHz frequency).
Features:
- Easy installation in most access control applications
- Reads Conekt mobile credentials as well as traditional contactless smart cards
- Supports both sector and card serial number (CSN) reads
- No pairing of devices required with BLE
- Support for private labeling with a backlit OEM label area
Technical Specifications
Warranty
Lifetime Warranty
Color
Black
Frequency
13.56 MHz
Mount Type
- Single Gang Wall Mount
- Surface Mount
IP Rating
IP67
Voltage
+8-14 VDC
Current
- 40mA typical @ 12 VDC
- 195 mA peak
Max Read Range
- Physical Credentials: up to 1.5 inches (38 mm)
- Mobile Credentials: Up to 15 feet (4.6 m)
America Wire Gauge
24AWG
Wiegand
Yes
Operating Temperature
–40° F to 149° F (–40° C to +65° C)
Indicator
LED
Compliance
- FCC
- ICC
- CE
- UL Standard 2942
Dimensions
- Mullion: 1.7"" W × 4.7"" H × 1.2"" D (43 mm × 119 mm × 30 mm)
- Switch Plate: 3in W × 5.1"" H × 1.2"" D (76 mm × 130 mm × 30 mm)
Warranty
Lifetime Warranty
