Description

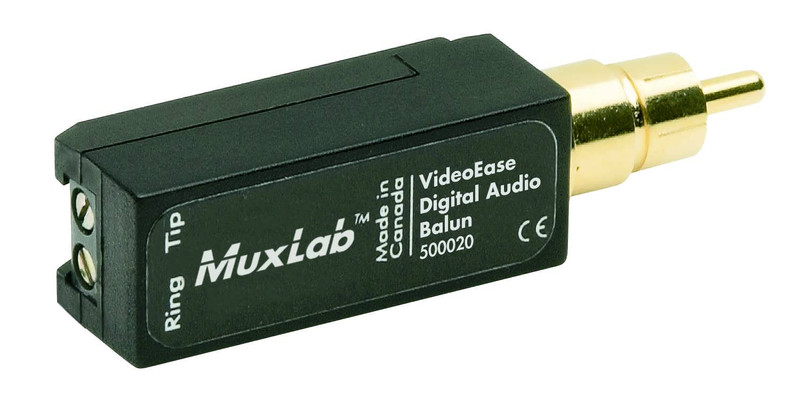

The MuxLab Digital Audio Balun (500020) allows a digital audio source to be connected at distances of up to 600ft / 183m away from a digital audio receiver via single Cat5e/6 cable. Used in pairs, the Digital Audio Balun allows a digital audio source such as BluRay, media servers, gaming consoles, or satellite receivers to be connected to a digital audio system (AVR / digital amplifier) in a point-to-point scenario using digital coax (RCA) connectors.
Features:
- Extend digital Coax audio signal distances up to 600ft / 183m via single Cat5e/6
- Gold plated S/PDIF RCA male connector
- Supports: Dolby Digital, Dolby Pro Logic, and DTS audio transmissions
- This product features MuxLab’s Limited Lifetime Warranty – see website for more information
Technical Specifications
Bandwidth
1MHz to 25 MHz
Cable Distance
600 ft
Connector Type
- Two (2) screw terminals
- One (1) S/PDIF (RCA) gold-plated male connector
Impedance
- Input: 75 ohms (RCA)
- Output: 100 ohms (Screw Terminals)
Operating Temperature
0 to 55 C
Operating Humidity
up to 95%
Material
Fire Retardant Plastic
Compliance
- FCC
- CE. US Design patent # D495
- 320
Warranty
Lifetime Warranty
Warranty
Lifetime Warranty
