Description

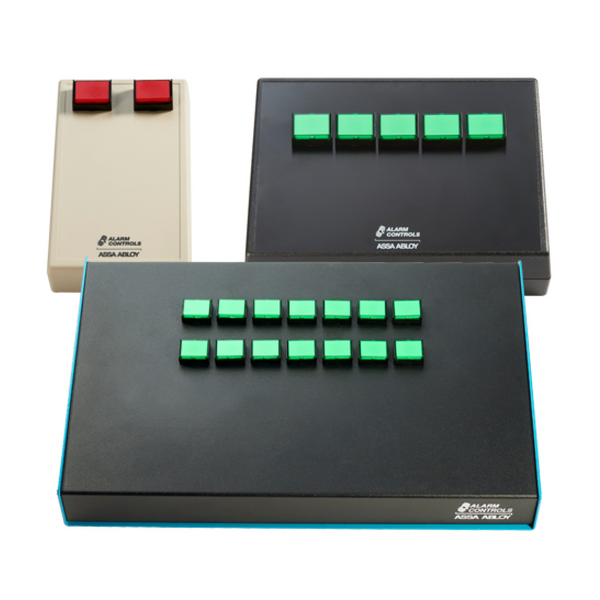

Desktop Console with single or multiple switch configurations. Choose between momentary action switches that remain active as long as they’re depressed or alternate action switches that alternate between open (disconnected) and closed (connected) each time they’re pressed. Designed to work with door status or lock status sensors in order to supervise and control several entry points from one main location.
Features:
- M1 with 1-2 switches, specify number of switches when ordering
- M2 with 3-12 switches,specify number of switches when ordering
- M3 with 13-40 switches, specify number of switches when ordering
- Console: specify G (beige) or K (black)
- Switch type, specify: SPDT/DPDT, momentary/alternat
- Lens color: green, red, yellow, blue, white
Technical Specifications
Console Type
Desktop control console
Gang Count
2 gangs (dual gang console)
Switches
6 SPDT momentary
LED Indicators
Green on each switch
Material
Stainless steel console face
Finish
Brushed stainless
Compliance
UL rated switches
Contact Rating
10 A @ 120 VAC / 35 VDC
Voltage Illum
12/24 VDC for LEDs
Termination
22 AWG colored leads
Mount
Desktop enclosure
Dimensions
Approx. 8×4×2 in.*
Warranty
Limited Lifetime Warranty
