Description

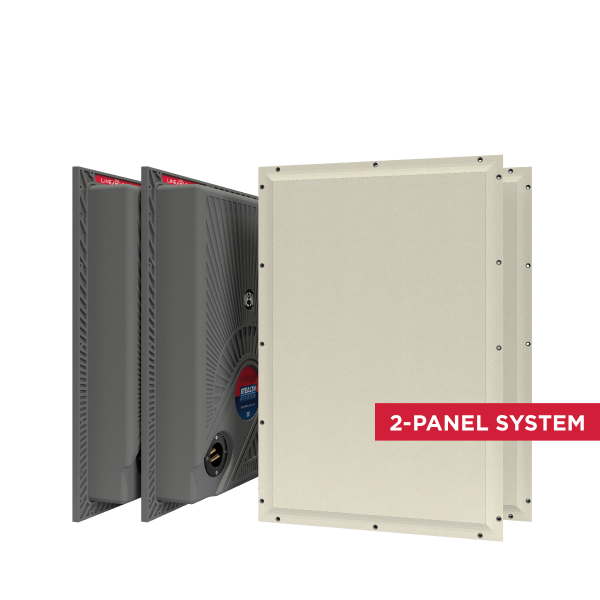

The Stealth Acoustics Model LR24W is a compact, two-panel monaural subwoofer speaker system that becomes completely invisible after installation. The subwoofer has a rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area. Installation instructions are shown on a paper overlay that is to be removed before installation. The overlay can also be used as a cutting template for retrofitting the speakers into existing wallboard.
Features:
- Integrated, acoustically tuned back box included with every speaker (removable)
- New transducer/exciter driver designs
- Increased overall efficiency
- Fidelity Glass Advanced tuned and dampened fiber diaphragm
- Easy-Tape tapered frame/diaphragm for improved finishing
- Increased power handling
Technical Specifications
Frequency
30Hz-150Hz
Sensitivity
86dB
Impedance
8Ω Nominal
Consumption
160W
Compliance
UL Listed
Dispersion
170 degrees vertical and horizontal
Warranty
20 Year Warranty
