Description

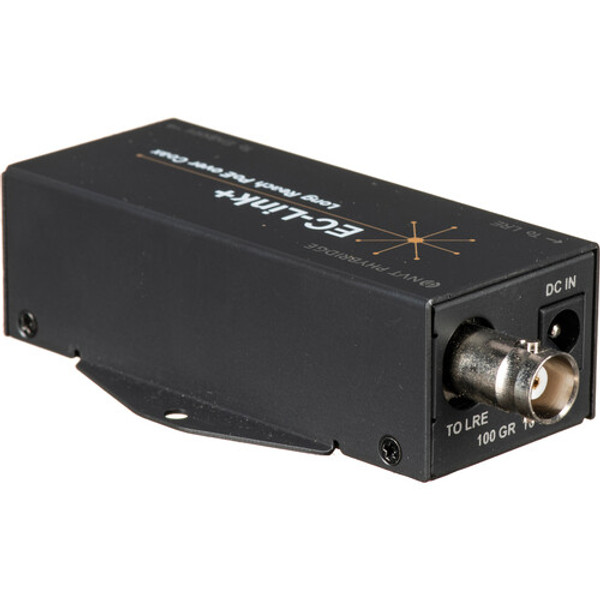

EC-Link+: Long Reach EoC adapter (50 Watts); local power option. Supports IEEE 802.1x. Meets EN 50121-4 (Railway/Subway) - single unit
Features:
- Compatible with NVT CLEER & EC Switches
- 100 Mb/s Full-Duplex PoE
- Transmission Range up to 6000'
- Delivers up to 50W
- Can Be Powered Locally or via PoE
- Metal Construction
Technical Specifications
Voltage
48 - 56 VDC
Consumption
1.1W
Color
Black
Material
Metal
Operating Temperature
-58 to 158°F / -50 to 70°C
Interface
- 1 BNC port: Coax cable (RG59
- RG6
- RG11
Mount Type
Rack Mount
Compliance
- FCC Part 15
- ICES-003
- EN 55032:2012
- EN 50121-4:2015
- Class B
- UL 60950-1 2nd Ed 2014-10-14
- CAN/CSA C22.2 No. 60950-1-07 2nd Ed 2014-10
- IEC 62368-1:2014
- EN 62368-1:2014
- AS/NZS 62368.1:2018
Dimensions
3.97 x 1.98 x 1.01" / 10.09 x 5.03 x 2.57 cm
Weight
3.8 oz / 108 g
Warranty
5 Years Warranty
