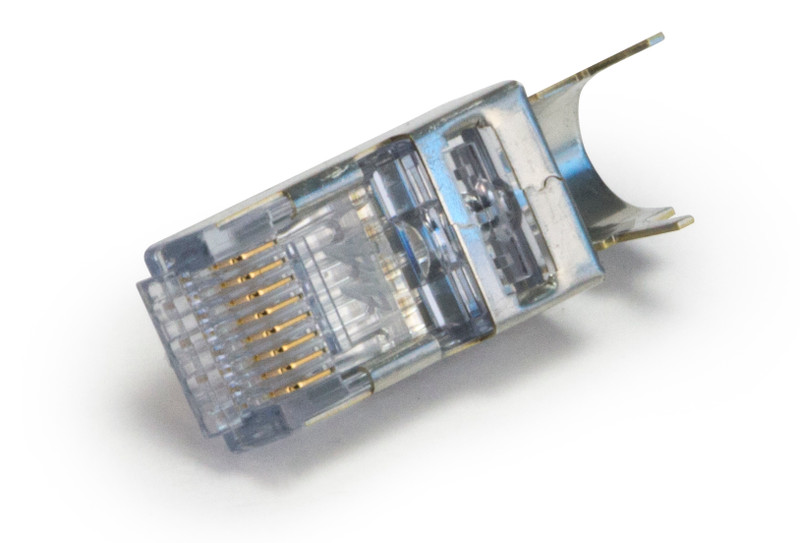

ezEX-RJ45(44) Pass-Through RJ45 Connectors, CAT6 Shielded with External Ground - 25pcs in Clamshell - 100025C

This shielded, patented ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with CAT6 and is terminated with EXO Crimp Frame® and EXO-EX Die™ (100061C).

Features:

• ezEX-RJ45 (ezEX44 series) pass-through RJ45 connectors
• ezEX44 connectors are designed for cables with 0.039" – 0.044" (1.0 – 1.12mm) insulation diameter
• Shielded with external ground
• Package includes 25 pieces
• Retail-ready clamshell packaging
• 0.280" (7.11mm) max cable outer diameter
• 0.039" - 0.044” (1.0 - 1.12mm) max insulation diameter (conductors)
• Compatible with solid or stranded 24 - 22AWG twisted pair cable
• 50 micron gold plated contacts
• Hi-Lo stagger to isolate each conductor
• Simple one piece/pass through design does not require bars or liners
• Compatible with CAT5E cables
• TAA, TIA, RoHS, UL & FCC compliant
• US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
• Rated for data and PoE applications
• Recommended crimp tools: 100061 or 12520
