Description

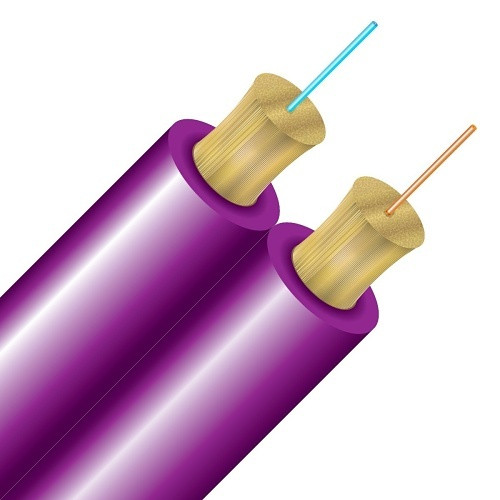

Cleerline SSF Duplex cable is composed of two strands of SSF cable in zipcord style with an overall 3.0 mm Riser, Plenum I/O, or LSZH I/O CPR rated jacket.
Features:
- Zipcord construction - easy to separate strands
- High mechanical strength, superior fatigue (Nd = 30)
- Compatible with common connector systems for 50/125 Multimode fibers
- Up to 10,000x the bend longevity of traditional fiber
- Integral SSF coating provides glass protection
- Increased safety due to incredible bend insensitivity
Technical Specifications
Color
Magenta
Cable Length
1000ft
Operating Temperature
-20°C to +75°C
Bandwidth
- 1300nm
- ≥ 500 MHz · km
Compliance
- ETL Listed Type OFNR
- CSA FT4
- IECA S-83-596 & OFNP
- CSA FT6 / IECA S-104-696
- . LSZH Listed CPR B2ca-s1a-d0
- a1.
