Description

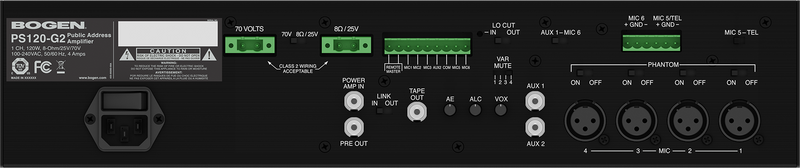

The next generation of Bogen Platinum Series (PS) Amplifiers delivers the highest audio volume for all speaker types at specified power levels, eliminating the need for an external impedance-matching transformer.
Features:
- 4 Dedicated microphone inputs ( connectors ) with selectable phantom power.
- Remote master volume control capability (using optional ).
- Audio Enhancement feature for improved voice intelligibility with adjustable level.
- Band full parametric equalizer with independent Gain, Frequency, and Q controls.
- True loudness contour function on 1 and 2.
- Lo-cut filter for all channels.
Technical Specifications
Voltage
100-240VAC
Frequency
- 20 Hz to 20 kHz
- +0/-2 dB @ -2 dB
Distortion
- 0.3% (typ.)
- 20 Hz to 20 kH
S/N Ratio
-70 dB
Output Regulation
Better than 2 dB from no load to full load
Current
1.55A
Sensitivity
0.07V (600 ohms)
Dimensions
16-1/2" W x 3-1/2" H x 13-1/2" D
