Description

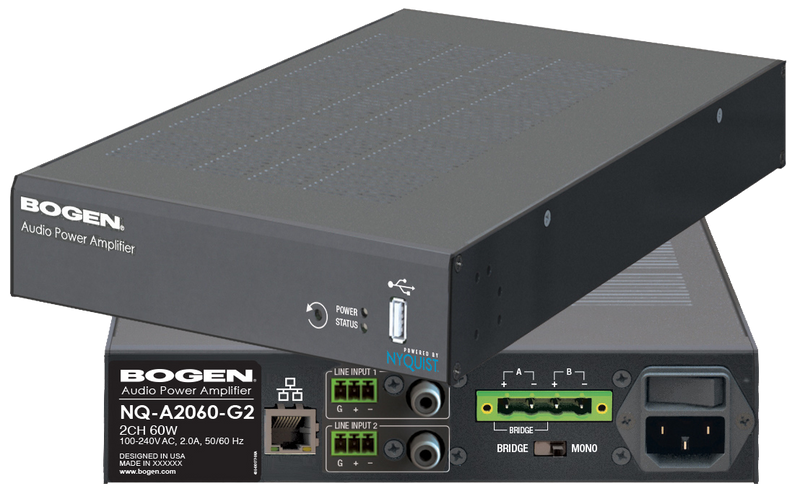

Bogen’s Nyquist-based networked audio power amplifiers offer cost-effective performance for permanent installations and commercial sound, and are designed to meet the rigorous requirements of today’s sophisticated sound systems.
Features:
- 2 dedicated Balanced Line Inputs (both Phoenix plug ).
- Line Inputs can be routed-out over the Nyquist network.
- Network-based audio input (paging, audio distribution).
- This product includes based control.
- Signal Present and Clip Monitor.
- Adjustable High Pass, Low Pass, and Bandpass Filters.
Technical Specifications
Output Type
- 60W @ 25V/4 ohms
- 120W @ 70V/25V/8 ohms
Sensitivity
Continuously variable from 2V to 0.1V RMS
S/N Ratio
97 dB
Bandwidth
20 Hz- 20 kHz < .03% THD+N
Impedance
- 8Ohms Bridged
- 4Ohms Non-Bridged
Frequency
20 Hz- 20 kHz +/- 0.25 dB
Voltage
85 VAC to 265 VAC 50/60 Hz
Indicator
- Status & Power LEDs (front)
- Network LEDs (rear)
Operating Temperature
-15 C to +40 C
Thermal Emissions
90 BTU/hr.
Current
2A
Dimensions
8.00” W x 1.70” H x 13.48” D
Warranty
1-Year Limited Warranty
